Ford Fusion: Parking Aid - Vehicles With: Active Park Assist / Rear Active Park Assist Sensors. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Rear Active Park Assist Sensors. Removal and Installation

Removal

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

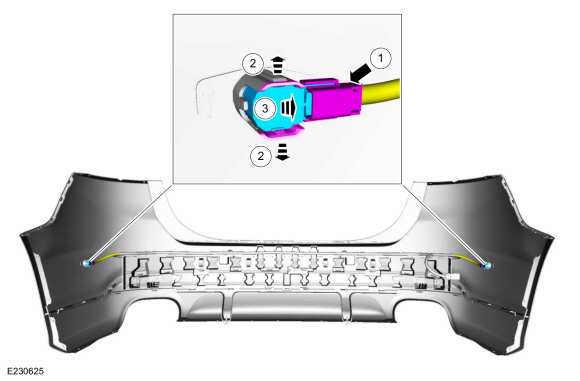

    1. Disconnect the electrical connector.
    1. Release the tabs.
    1. Remove the active park assist sensor.
Ford Fusion. Rear Active Park Assist Sensors. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Carry out the azimuth system check.
    Refer to: Azimuth System Check (413-13B Parking Aid - Vehicles With: Active Park Assist, General Procedures).

    Front Active Park Assist Sensors. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: The LH side shown, RH side is similar. Remove the front wheel and tire...
