Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable. Removal and Installation

Removal

  1. Remove the FDIM.
    Refer to: Front Display Interface Module (FDIM) (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).

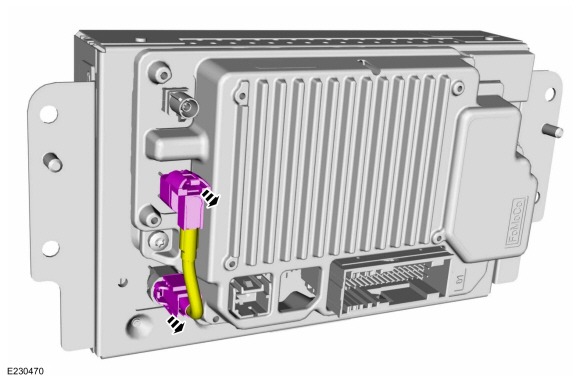

  1. Disconnect the electrical connectors and remove the APIM to FDIM cable.
Ford Fusion. SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
