Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / SYNC Module [APIM] - Police. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the retainer, release the clips and remove the RH center instrument panel trim panel.
    Use the General Equipment: Interior Trim Remover
Ford Fusion. SYNC Module [APIM] - Police. Removal and Installation

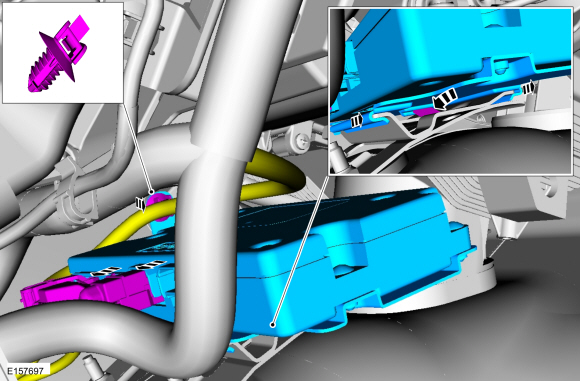

  1. Remove the retainers and the APIM.
    • Disconnect the electrical connectors.
Ford Fusion. SYNC Module [APIM] - Police. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. If a new APIM is being installed, program the APIM to the correct software level.
    Refer to: SYNC Module [APIM] Programming (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, General Procedures).
