Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / SYNC Module [APIM]. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: SYNC 3 / SYNC Module [APIM]. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the FDIM.
Refer to: Front Display Interface Module (FDIM) (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).

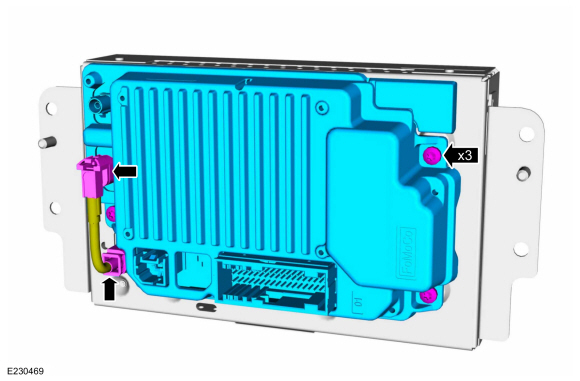

- Disconnect the electrical connector.
- Remove the retainers and separate the APIM.
  Torque: 9 lb.in (1 Nm)

Installation

To install, reverse the removal procedure.

If a new APIM is being installed, program the APIM to the correct software level.
Refer to: SYNC Module [APIM] Programming (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, General Procedures).
