Ford Fusion: Steering Wheel and Column Electrical Components / Steering Column Control Module (SCCM). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Steering Column Control Module (SCCM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. If installing a new SCCM, connect the diagnostic scan tool and upload the module configuration information from the SCCM.
  1. Remove the steering wheel.
    Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

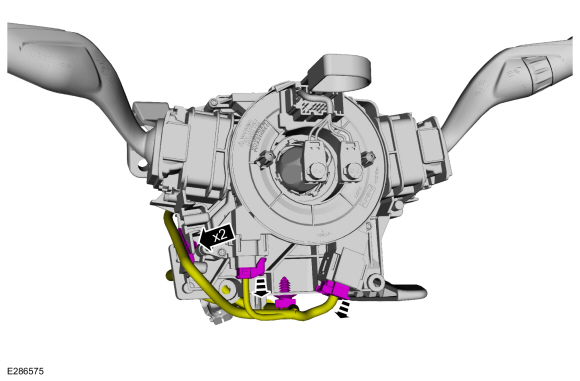

  1. Disconnect the SCCM electrical connectors, detach the retainers and position the wiring harness aside.
Ford Fusion. Steering Column Control Module (SCCM). Removal and Installation

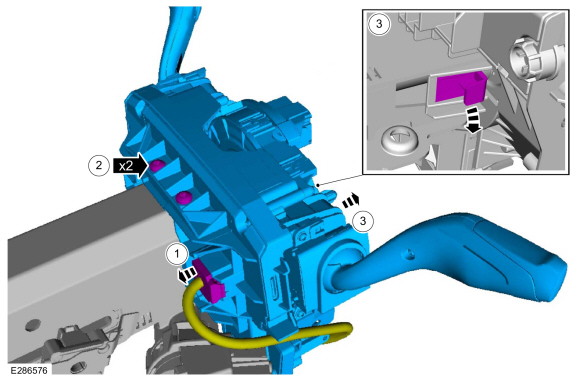

    1. Disconnect the electrical connector.
    1. Remove the screws.
      Torque: 35 lb.in (4 Nm)
    1. NOTE: Locking tab located on the bottom of the SCCM.

      Release the locking tab and remove the SCCM.
Ford Fusion. Steering Column Control Module (SCCM). Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. If a new SCCM was installed, download the module configuration information from the diagnostic scan tool.
