Ford Fusion: Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / External Controls - Component Location. Description and Operation

Component Location

Ford Fusion. External Controls - Component Location. Description and Operation

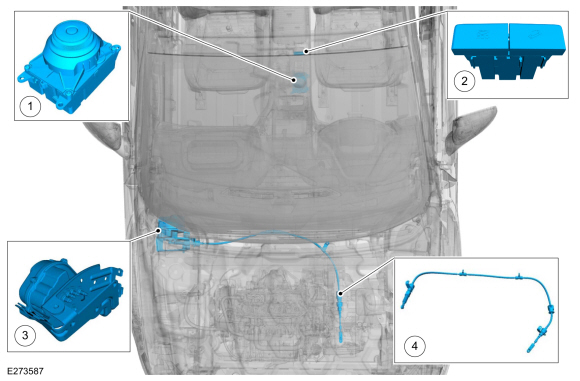

Item Part Number Description
1 7P1557P155 GSM (gearshift module) with rotary dial
2 13D73013D730 TCS (transmission control switch)
3 7E0967E096 TRCM (transmission range control module)
4 7E3957E395 Selector lever cable

    Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35

    ..

    External Controls - Overview. Description and Operation

    Overview The shift by wire system uses a rotary dial mounted on top of the GSM to command an actuator called the TRCM to change gear lever positions via a shift cable connected to the manual control lever located on the transmission...
