Ford Fusion: Climate Control System - General Information / Evaporator. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the heater core.
    Refer to: Heater Core (412-00 Climate Control System - General Information, Removal and Installation).

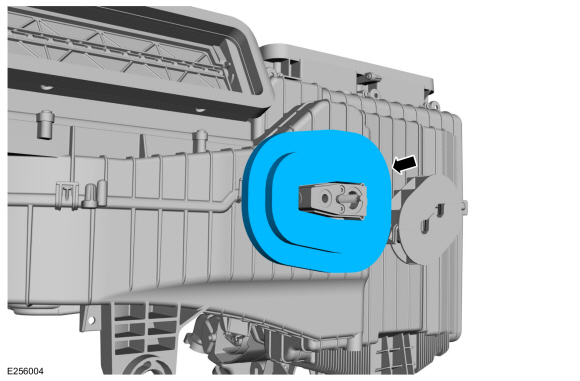

  1. Remove the climate control housing seal.
Ford Fusion. Evaporator. Removal and Installation

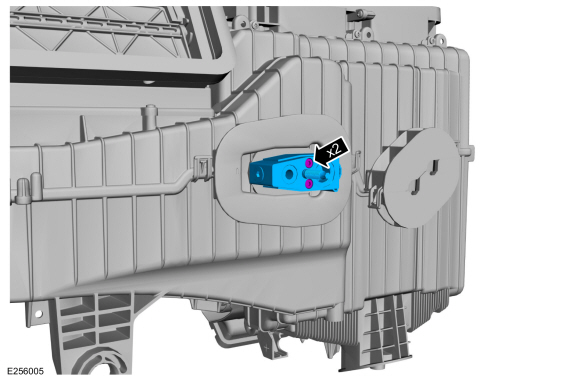

  1. Remove the bolts and the thermostatic expansion valve. Discard the gasket seals.
    Torque: 71 lb.in (8 Nm)
Ford Fusion. Evaporator. Removal and Installation

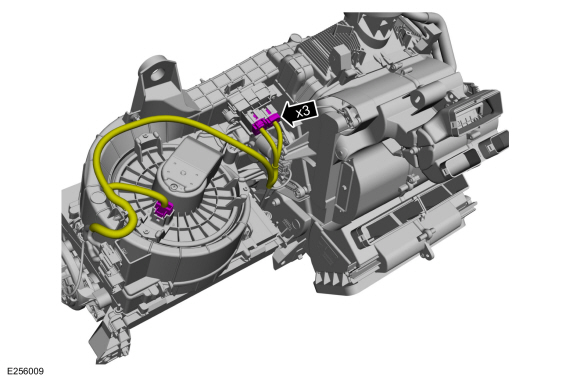

  1. Disconnect the blower motor and the blower motor speed control.
Ford Fusion. Evaporator. Removal and Installation

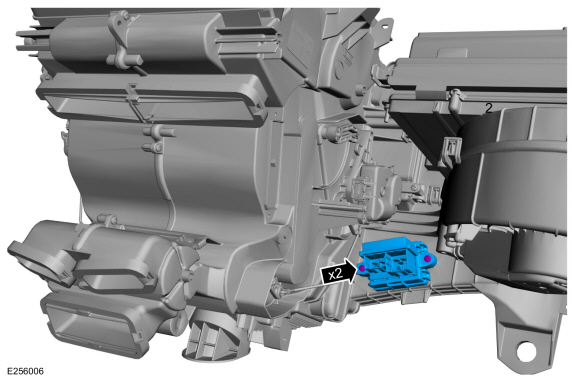

  1. Remove the blower motor speed control.
Ford Fusion. Evaporator. Removal and Installation

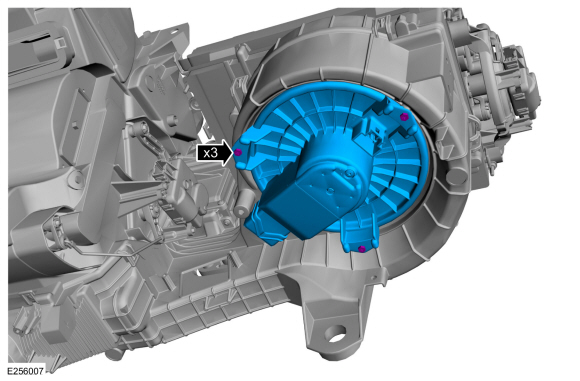

  1. Remove the blower motor.
Ford Fusion. Evaporator. Removal and Installation

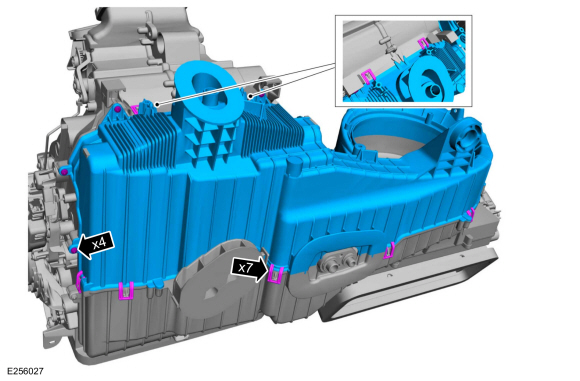

  1. Remove the retainer and release the climate control housing retaining clips.
Ford Fusion. Evaporator. Removal and Installation

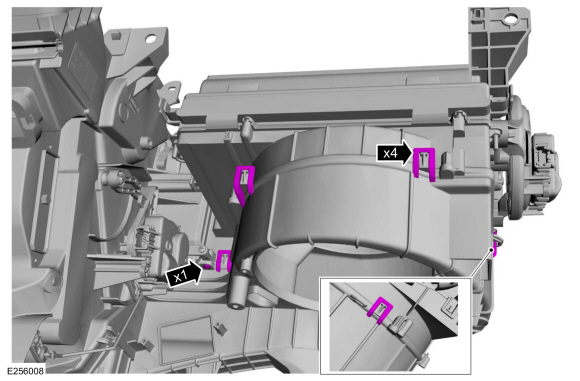

  1. Remove the retainer and release the climate control housing retaining clips.
Ford Fusion. Evaporator. Removal and Installation

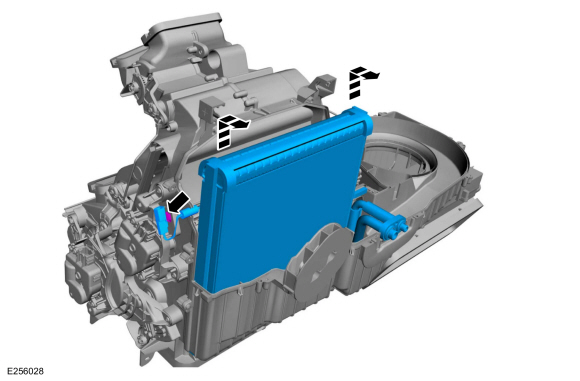

  1. Detach the evaporator temperature sensor and remove the evaporator.
Ford Fusion. Evaporator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
