Direction Indicators

Ford Fusion. Direction Indicators. Interior Lamps

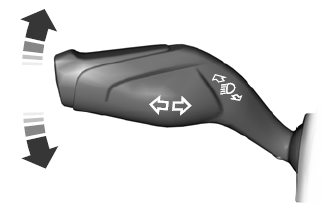

Push the lever up or down to use the direction indicators.

Note: Tap the lever up or down to make the direction indicators flash three times to indicate a lane change.

Interior Lamps

The lamps turn on under the following conditions:

  • You open any door.
  • You press a remote control button.
  • You press the all lamps on button on the overhead console.

Front Interior Lamp

Ford Fusion. Direction Indicators. Interior Lamps

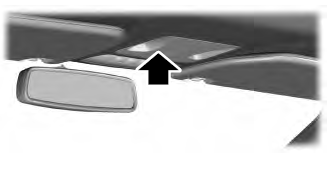

The front interior lamp switches are on the overhead console.

Note: The position of each button on the overhead console depends on your vehicle.

All Lamps On

Ford Fusion. Direction Indicators. Interior Lamps Press to switch all interior lamps on.

All Lamps Off

Ford Fusion. Direction Indicators. Interior Lamps Press to switch all interior lamps off.

Individual Dome Lamps

Ford Fusion. Direction Indicators. Interior Lamps Press to switch the left-hand individual dome lamp on and off.

Ford Fusion. Direction Indicators. Interior Lamps Press to switch the right-hand individual dome lamp on and off.

Interior Lamp Function

Ford Fusion. Direction Indicators. Interior Lamps Press to switch the interior lamp function on and off.

When the interior lamp function is off and you open a door, the courtesy and door lamps stay off.

When the interior lamp function is on and you open a door, the courtesy and door lamps turn on.

Note: The indicator lamp lights amber when the door function is off.

Individual Map Lamps

Press a map lens to switch individual map lamps on and off independently.

Rear Interior Lamps

The rear interior lamps may be above the rear seat or above the rear windows.

Ford Fusion. Direction Indicators. Interior Lamps Press to switch the lamps on or off.

    Front Fog Lamps (IF EQUIPPED)

    Switching the Front Fog Lamps On or Off Only switch the front fog lamps on during reduced visibility. You can switch the front fog lamps on if any of the following occur: You set the lighting control to the parking lamps position...

    Ambient Lighting (IF EQUIPPED)

    Use the touchscreen to select the following: Select the settings option on the feature bar. Select ambient lighting. Switching Ambient Lighting On Touch a color once...
