Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Telematics Control Unit (TCU) Module Antenna. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the parcel shelf.
Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

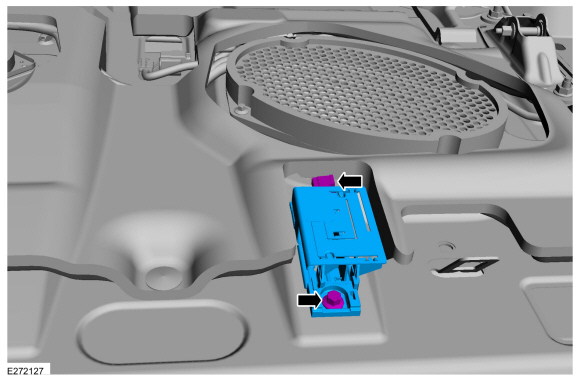

Remove the screw, disconnect the antenna cable connector and remove the TCU antenna.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Remove the USB port bezel.
Disconnect the electrical connectors...
Other information:
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module. This information must be downloaded into the new
module after installation...
