Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Telematics Control Unit (TCU) Module. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the TCU following the on-screen instructions.

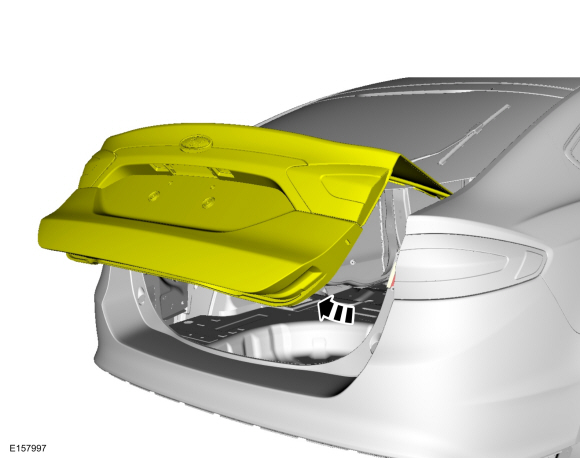

  1. Open the luggage compartment lid.
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation

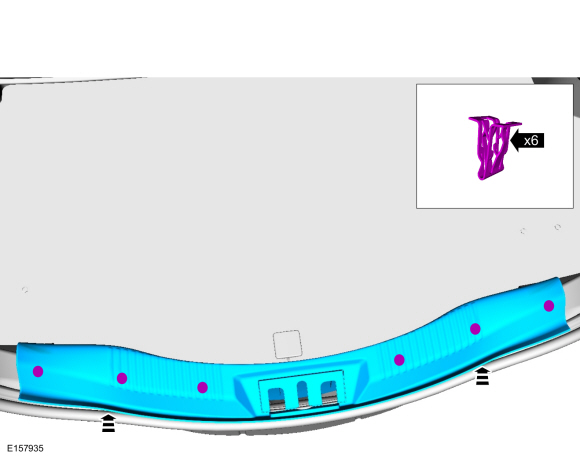

  1. Release the clips and remove the rear plate.
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation

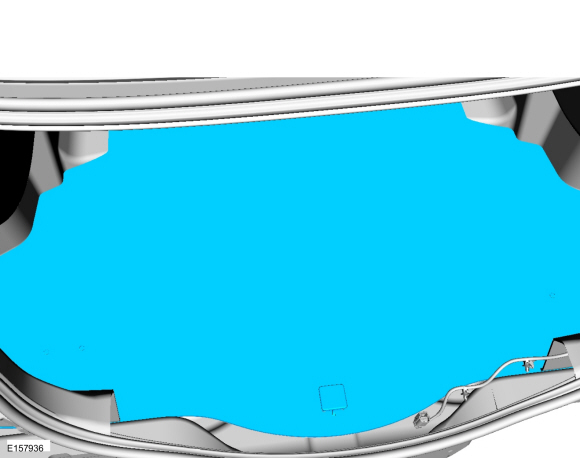

  1. Remove the carpeting from the working area.
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation
  1. Remove the retainers and position aside the LH loadspace trim panel.
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation
  1. On hybrid or battery electric vehicles.

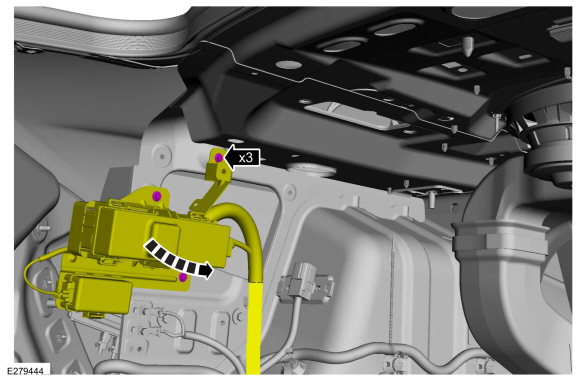

    Remove the bolts and position the junction box aside.
    Torque: 44 lb.in (5 Nm)
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation

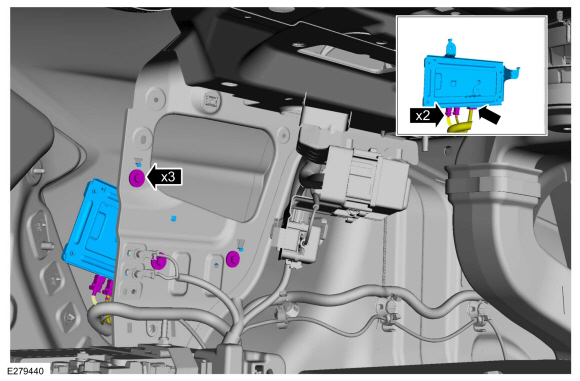

  1. Remove the screws, disconnect the electrical connectors and remove the TCU.
    Torque: 44 lb.in (5 Nm)
Ford Fusion. Telematics Control Unit (TCU) Module. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary if replacing the TCU.

    Using a diagnostic scan tool, complete the PMI process for the TCU following the on-screen instructions.
