Ford Fusion: Climate Control System - General Information / Driver Side Temperature Door Actuator. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Driver Side Temperature Door Actuator. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Driver Side Temperature Door Actuator. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the accelerator pedal.
    Refer to: Accelerator Pedal (310-02 Acceleration Control, Removal and Installation).

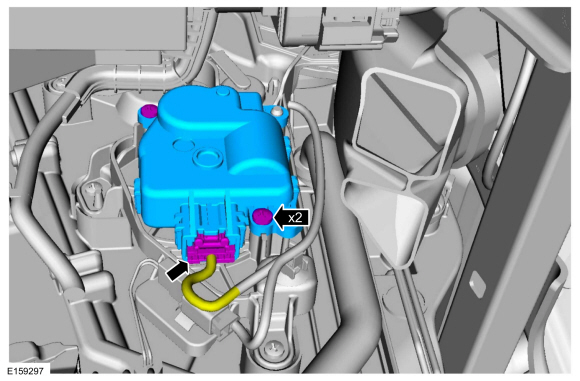

  1. Disconnect the electrical connector, remove the retainers and the driver side temperature door actuator.
Ford Fusion. Driver Side Temperature Door Actuator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    Driver Side Register Air Discharge Temperature Sensor. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details.   WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...

    Evaporator. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the heater core. Refer to: Heater Core (412-00 Climate Control System - General Information, Removal and Installation)...
