Removal

NOTE: Removal steps in this procedure may contain installation details.

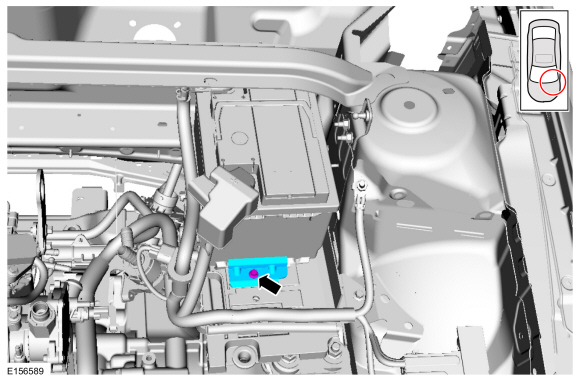

  1. Remove the battery hold down bolt and plate.
    Torque: 89 lb.in (10 Nm)
Ford Fusion. Brake Vacuum Sensor. Removal and Installation

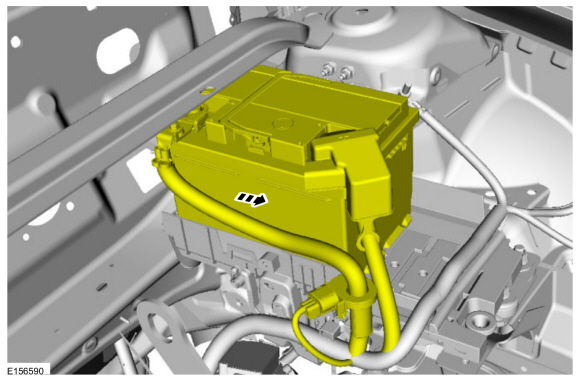

  1. Position the battery forward.
Ford Fusion. Brake Vacuum Sensor. Removal and Installation

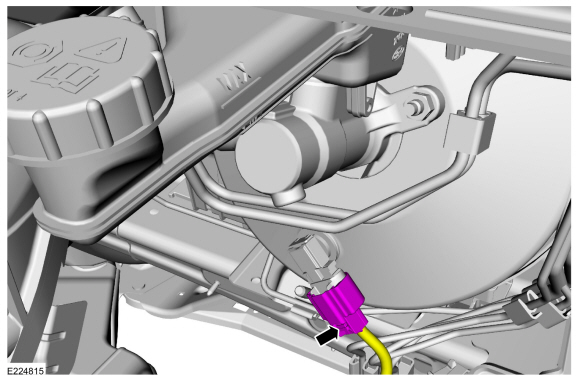

  1. Disconnect the brake vacuum sensor electrical connector.
Ford Fusion. Brake Vacuum Sensor. Removal and Installation

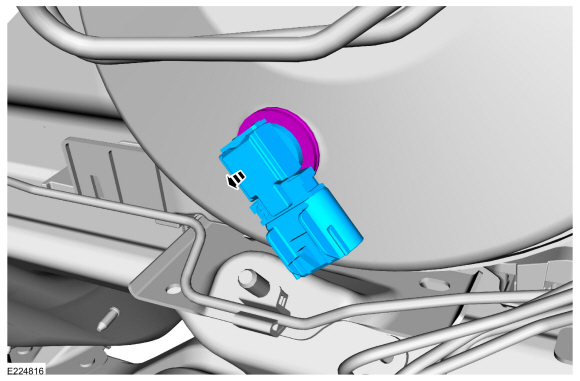

  1. Remove the brake vacuum sensor.
Ford Fusion. Brake Vacuum Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
