Ford Fusion: Steering Wheel and Column Electrical Components / Steering Wheel Multifunction Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Steering Wheel Multifunction Switch. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Steering Wheel Multifunction Switch. Removal and Installation  WARNING: Before beginning any service procedure in this section, REFER to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Follow the health and safety precautions.
    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the driver airbag.
    Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

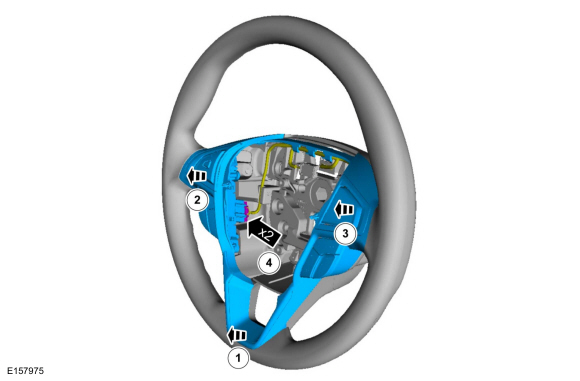

    • Using a suitable flat-bladed tool, start at the bottom and remove the bezel in the sequence shown.
      Use the General Equipment: Interior Trim Remover
    • Disconnect the electrical connectors and remove the bezel.
Ford Fusion. Steering Wheel Multifunction Switch. Removal and Installation

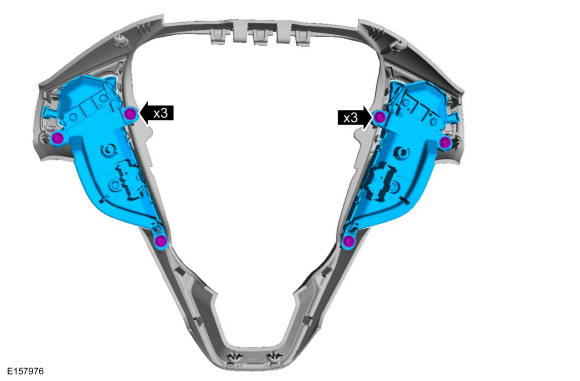

  1. Remove the screws and the steering wheel multifunction switches.
    Torque: 27 lb.in (3 Nm)
Ford Fusion. Steering Wheel Multifunction Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
