Ford Fusion: Parking Aid / Azimuth System Check. General Procedures

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid / Azimuth System Check. General Procedures

Check

NOTE: The object used in this system check can be fabricated using a 9 cm diameter (3 in I.D.) pipe, 100 cm (39 in) in length (available as Polyvinyl Chloride (PVC) pipe, or similar from a hardware or plumbing supply.

NOTE: The following system check should be carried out with the vehicle on a level surface.

NOTE: Actual sensor arrangement may differ from the configuration shown.

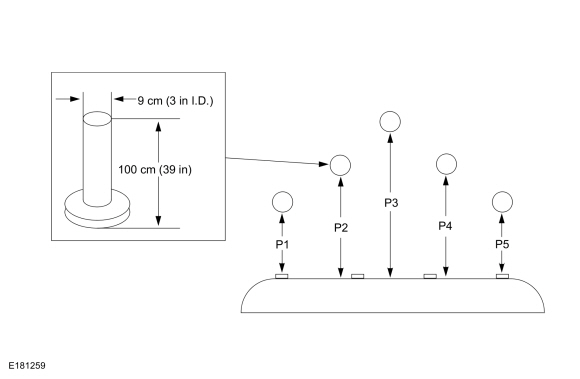

Distribute the test objects evenly across the bumper as shown. Refer to the specifications in this section.

Turn the ignition switch to the ON position, engine off.

Apply the parking brake.

Select REVERSE (R) for rear parking aid.

Select DRIVE (D) for front parking aid.

NOTE: The system provides audio warnings only when the vehicle is moving or when the vehicle is stationary and the detected obstacle is less than 12 in (30 cm) away from the bumper.
Using a diagnostic scan tool, monitor the parking aid sensor distance Parameter Identifications (PIDs) to verify the objects are detected when placed in the specified locations (P1, P2, P3, P4 and P5).

Parking Aid. Diagnosis and Testing

DTC Chart: Parking Aid Module (PAM) Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

Elevation System Check. General Procedures

Check Turn the ignition ON, engine OFF. Set the parking brake. Place the gearshift in REVERSE (R) for rear parking aid sensors...
