Ford Fusion: Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Transmission Fluid Heater Coolant Control Valve. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Transmission Fluid Heater Coolant Control Valve. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp(s)
Hose Clamp Remover/Installer

Removal

  1. Remove the battery tray.
    Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

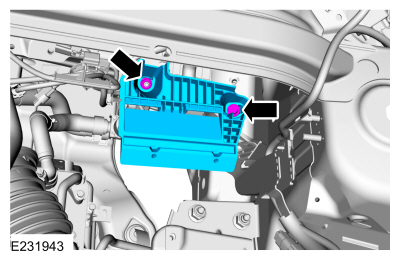

  1. Remove the retainers and the battery tray bracket.
    Torque: 35 lb.in (4 Nm)
Ford Fusion. Transmission Fluid Heater Coolant Control Valve. Removal and Installation

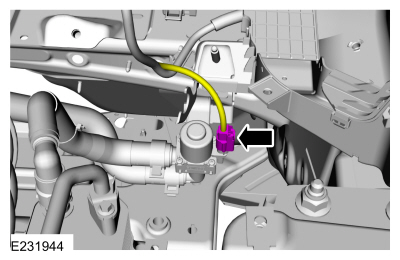

  1. Disconnect the coolant control valve electrical connector.
    Use the General Equipment: Hose Clamp(s)
Ford Fusion. Transmission Fluid Heater Coolant Control Valve. Removal and Installation

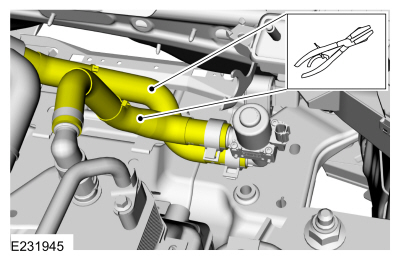

  1. Clamp off the coolant control valve hoses.
Ford Fusion. Transmission Fluid Heater Coolant Control Valve. Removal and Installation

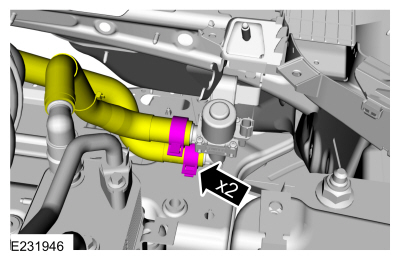

  1. Release the clamps and disconnect the coolant hoses.
    Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Transmission Fluid Heater Coolant Control Valve. Removal and Installation

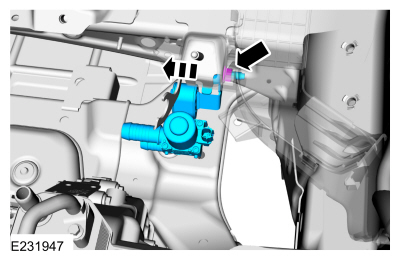

  1. NOTE: Do not remove the transmission fluid heater colant control valve from its isolator.

    Remove the nut and the transmission fluid heater coolant control valve bracket assembly.
    Torque: 177 lb.in (20 Nm)
Ford Fusion. Transmission Fluid Heater Coolant Control Valve. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system without using the vacuum cooling system filler.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
