Ford Fusion: Exterior Trim and Ornamentation / Rocker Panel Moulding. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Exterior Trim and Ornamentation / Rocker Panel Moulding. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTICE: Before beginning any service procedure in this section, REFER to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

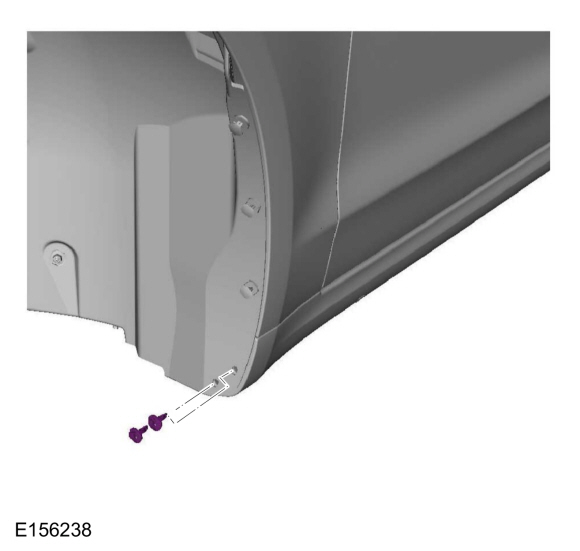

Remove the retainers.

Ford Fusion. Rocker Panel Moulding. Removal and Installation

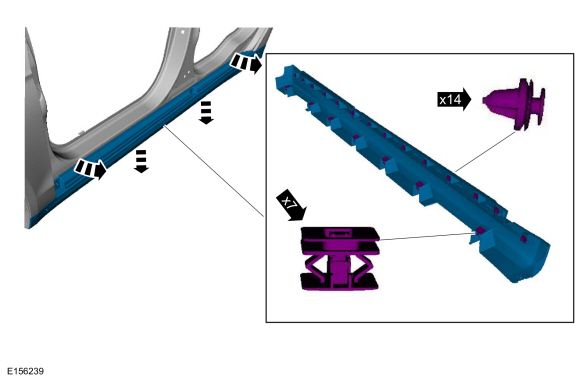

Remove the rocker panel moulding.
- Release the clips along the side of the rocker panel moulding.
- Slide rocker panel downward and remove.

Installation

To install, reverse the removal procedure.
