Ford Fusion: Wipers and Washers / Rain Sensor. Removal and Installation

Removal

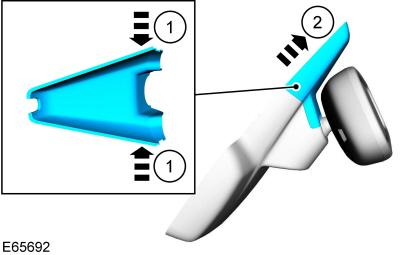

  1. Remove the upper rain sensor cover.
    1. Squeeze the upper rain sensor cover.
    1. Remove the upper rain sensor cover.
Ford Fusion. Rain Sensor. Removal and Installation

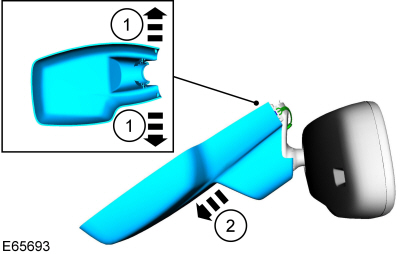

  1. Remove the lower rain sensor cover.
    1. Release the tabs.
    1. Remove the lower rain sensor cover.
Ford Fusion. Rain Sensor. Removal and Installation

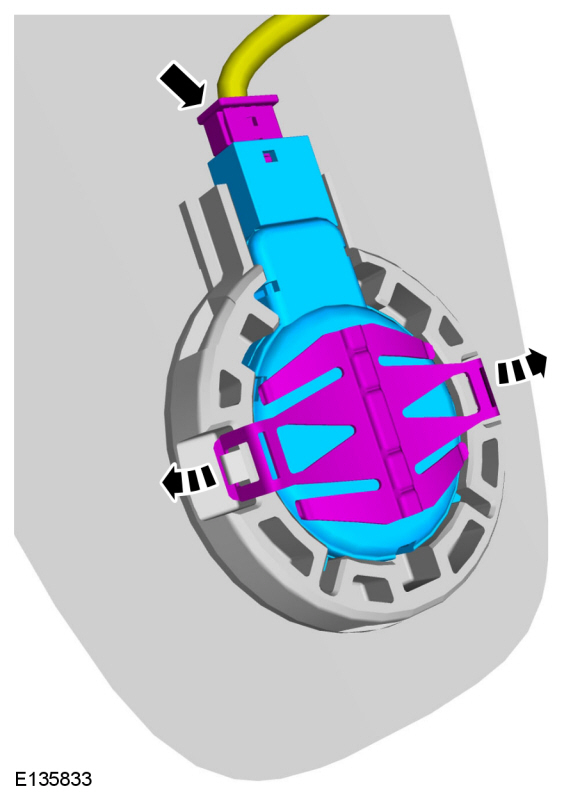

  1. Remove the rain sensor.
    • Disconnect the electrical connector.
    • Release the retainers.
    • Remove the rain sensor.
Ford Fusion. Rain Sensor. Removal and Installation

Installation

  1. NOTICE: Make sure the windshield glass is clean and free of foreign material.

    NOTICE: Inspect the silicone gel pad for damage. If damaged, install a new silicone gel pad.

    To install, reverse the removal procedure.

    Wipers and Washers. Diagnosis and Testing

    DTC Chart: BCM Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

    Windshield Wiper Motor. Removal and Installation

    Removal NOTE: LH windshield wiper motor shown, RH windshield wiper motor similar. NOTE: Removal steps in this procedure may contain installation details...
