Ford Fusion: Exterior Trim and Ornamentation / Rear Spoiler. Removal and Installation
Removal
NOTE: Removal steps in this procedure may include installation details.
-
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
WARNING:
Before beginning any service procedure in this
section, REFER to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
-
Remove the rear lamp assembly.
Refer to: Rear Lamp Assembly - 4-Door (417-01 Exterior Lighting, Removal and Installation).
-
NOTE: Spoiler retainer nuts are accessed through the rear lamp housing in luggage compartment lid.
Remove the nuts.
Torque: 48 lb.in (5.4 Nm)
 |
-

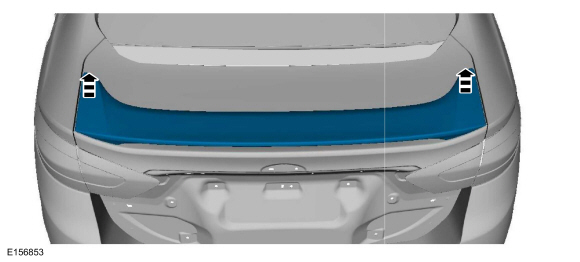

Release the clips and remove the rear spoiler.
 |
Installation
-
To install, reverse the removal procedure.
Rear Door Upper Moulding. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
NOTICE:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information...
Rocker Panel Moulding. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
NOTICE:
Before beginning any service procedure in this
section, REFER to Safety Warnings in section 100-00 General Information...
