Ford Fusion: Glass, Frames and Mechanisms / Rear Door Glass Top Run. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear door window glass.
    Refer to: Rear Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

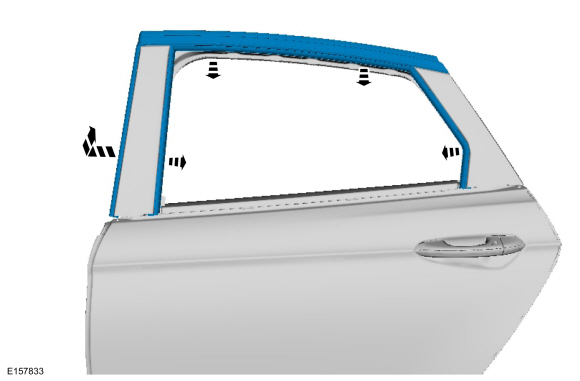

  1. Remove the rear door upper trim.
    1. Remove the retainers from the rear door upper trim.
    1. Remove the rear door upper trim.
Ford Fusion. Rear Door Glass Top Run. Removal and Installation

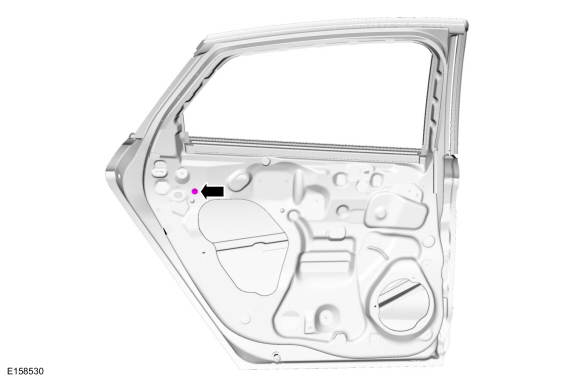

  1. Remove the bolt.
    Torque: 89 lb.in (10 Nm)
Ford Fusion. Rear Door Glass Top Run. Removal and Installation

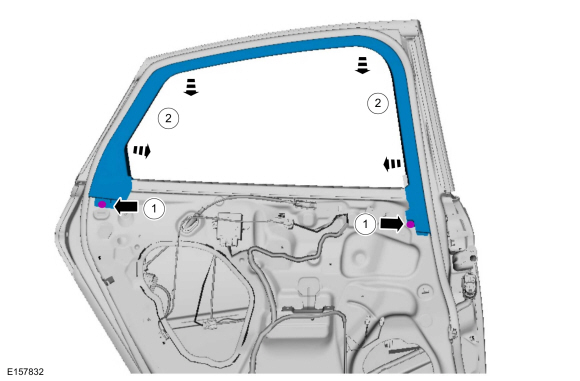

  1. Remove the rear door glass top run.
Ford Fusion. Rear Door Glass Top Run. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Perform the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
