Ford Fusion: Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Tank Pressure Sensor and Tube. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Tank Pressure Sensor and Tube. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Position the vehicle on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Remove the fuel tank.
Refer to: Fuel Tank (310-01A Fuel Tank and Lines - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

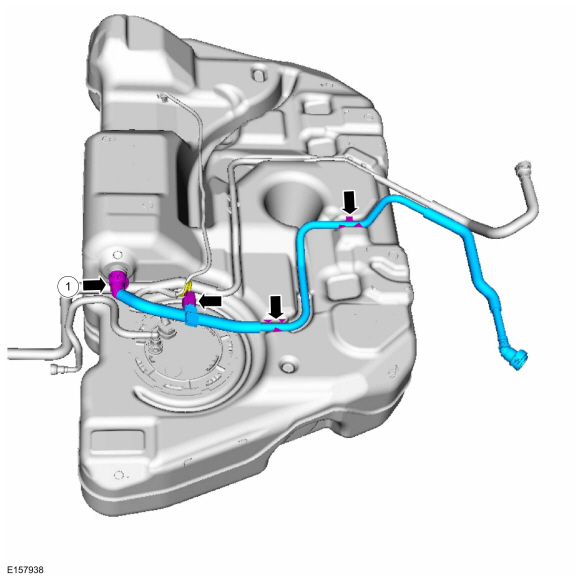

Remove the fuel tank pressure sensor and tube.
1. Disconnect the quick release coupling and disconnect the electrical connector.
  Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).

Installation

To install, reverse the removal procedure.

Evaporative Emission Canister Ventilation Filter. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the EVAP canister. Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 1...
