Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the EVAP canister.
    Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. NOTE: Do not apply oil to the EVAP canister vent solenoid O-ring seal. Clean water may be applied to aid reassembly.

    If necessary.

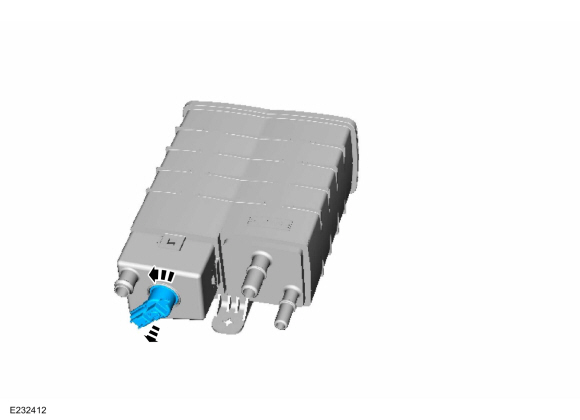

    Remove the EVAP canister solenoid.
Ford Fusion. Evaporative Emission Canister Ventilation Filter. Removal and Installation

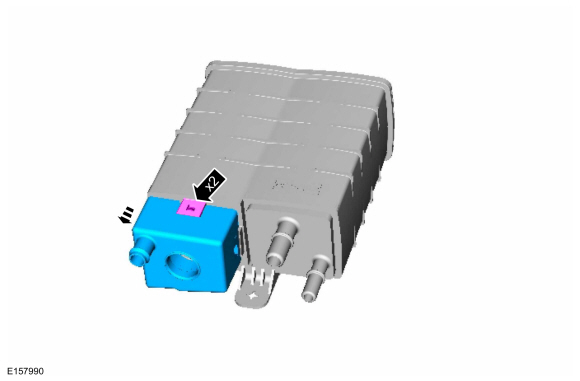

  1. Release the tabs and remove EVAP canister ventilation filter.
Ford Fusion. Evaporative Emission Canister Ventilation Filter. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
