Ford Fusion: Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4 / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4 / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the EVAP canister.
    Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

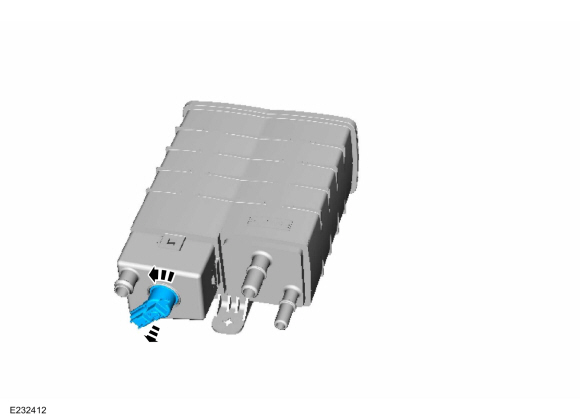

  1. Remove the EVAP canister solenoid.
Ford Fusion. Evaporative Emission Canister Vent Solenoid. Removal and Installation

Installation

  1. NOTE: Do not apply oil to the EVAP canister vent solenoid O-ring seal. Clean water may be applied to aid reassembly.

    To install, reverse the removal procedure.
