Ford Fusion: Glass, Frames and Mechanisms / Front Door Glass Top Run. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Front Door Glass Top Run. Removal and Installation

Removal

  1. Remove the front door window glass.
    Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

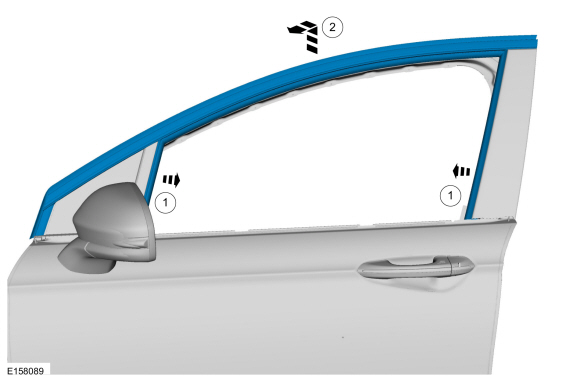

  1. Remove the retainers from the front door upper trim and remove the front door upper trim.
Ford Fusion. Front Door Glass Top Run. Removal and Installation

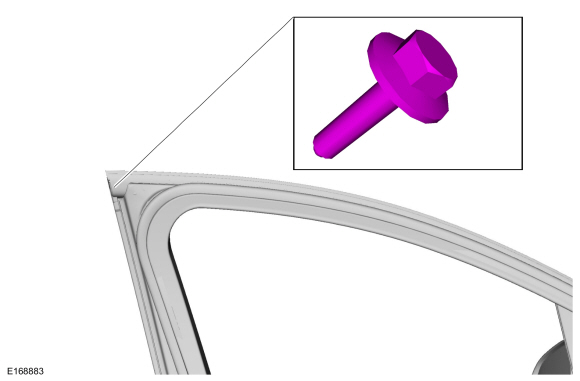

  1. Remove the bolt.
Ford Fusion. Front Door Glass Top Run. Removal and Installation

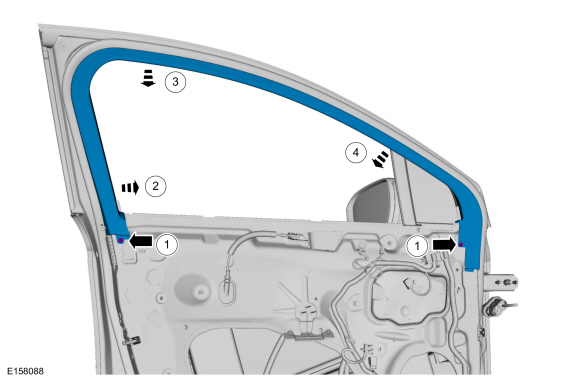

  1. Remove the front door glass top run.
Ford Fusion. Front Door Glass Top Run. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Perform the power door window initialization.
    Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
