Ford Fusion: Glass, Frames and Mechanisms / Front Door Window Control Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Front Door Window Control Switch. Removal and Installation

Removal

Both doors

NOTE: Driver side shown, passenger side similar.

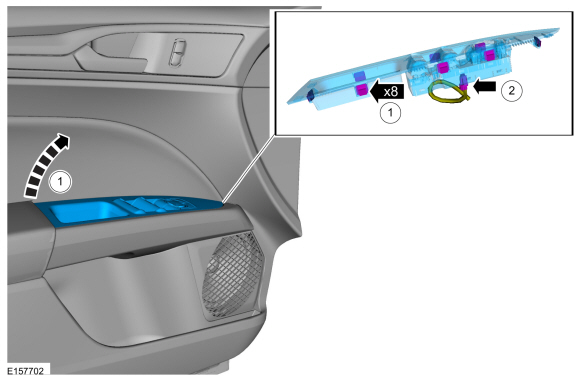

  1. Remove the front door window control switch.
    1. Release the rear clip and remove the switch bezel.
    1. Disconnect the electrical connectors.
Ford Fusion. Front Door Window Control Switch. Removal and Installation

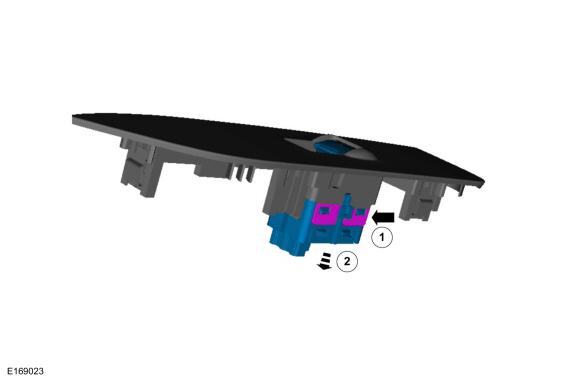

Driver side

  1. Remove the front door window control switch from the bezel.
Ford Fusion. Front Door Window Control Switch. Removal and Installation

Passenger side


  1. Remove the front door window control switch.
    1. Release the front door window control switch retaining clips.
    1. Remove the front door window control switch from the door trim panel.
Ford Fusion. Front Door Window Control Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
