Ford Fusion: Glass, Frames and Mechanisms / Rear Door Window Control Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Rear Door Window Control Switch. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

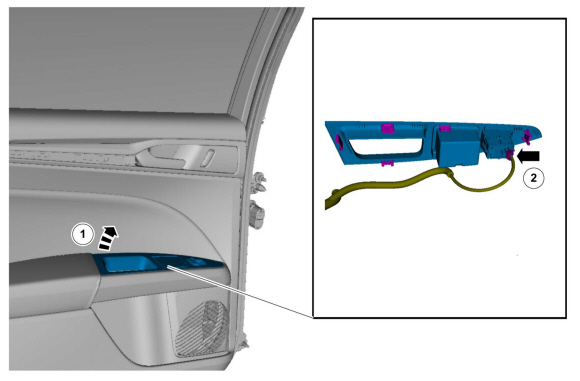

Remove the rear door window control switch.
1. Remove the rear door window control switch bezel assembly.
1. Disconnect the rear door window control switch electrical connector.

Ford Fusion. Rear Door Window Control Switch. Removal and Installation

NOTE: This step is only necessary when installing a new component.

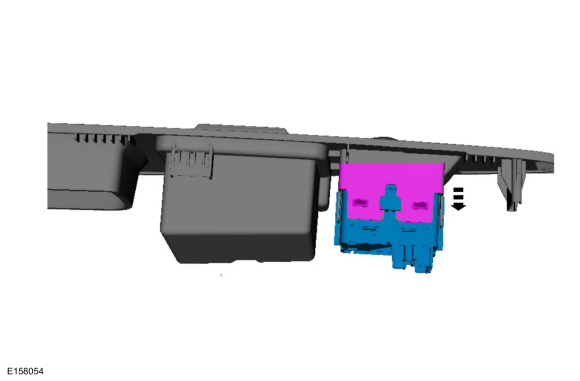

Remove the rear door window control switch.
- Release the rear door window control switch retaining clips.
- Remove the rear door window control switch from the bezel assembly.

Installation

To install, reverse the removal procedure.
