Ford Fusion: Climate Control System - General Information / Sunload Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Sunload Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Sunload Sensor. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).

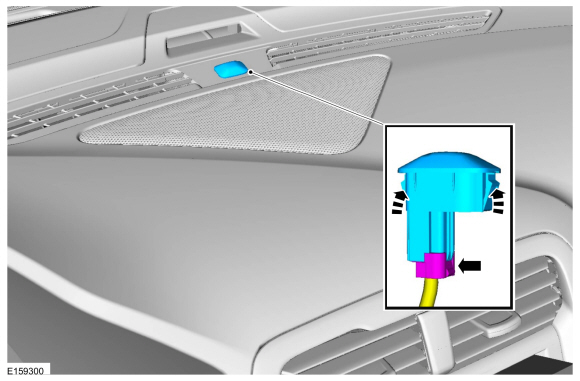

  1. Remove the sunload sensor and disconnect the electrical connector.
Ford Fusion. Sunload Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
