Ford Fusion: Body Closures / Rear Door Check Arm. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Rear Door Check Arm. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

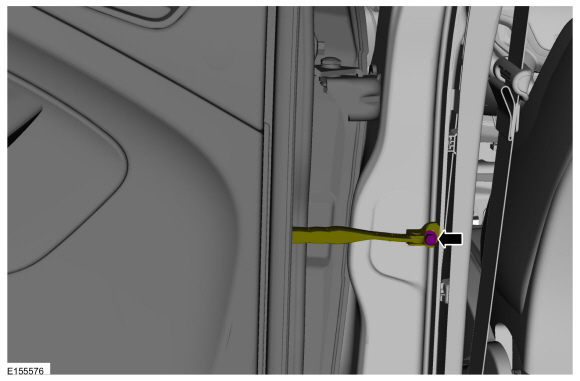

  1. Remove the rear check arm bolt.
    Torque: 18 lb.ft (25 Nm)
Ford Fusion. Rear Door Check Arm. Removal and Installation
  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

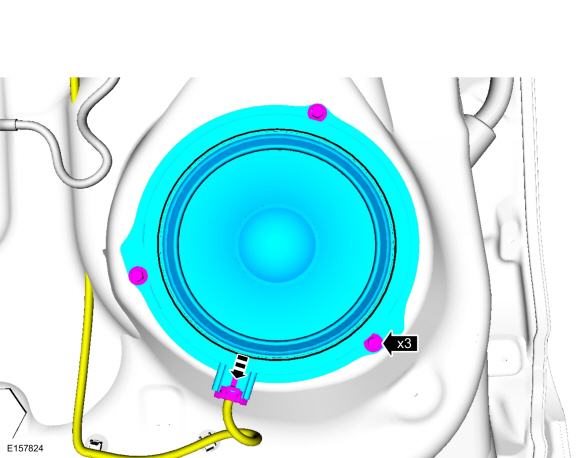

  1. Disconnect the electrical connector, remove the bolts and the speaker.
Ford Fusion. Rear Door Check Arm. Removal and Installation

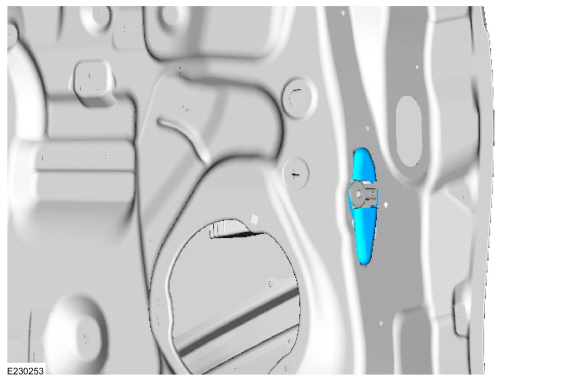

  1. Remove the rear door check cover.
Ford Fusion. Rear Door Check Arm. Removal and Installation

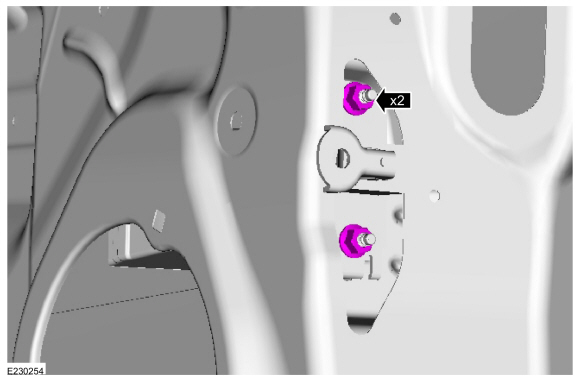

  1. Remove the rear door check arm nuts.
    Torque: 106 lb.in (12 Nm)
Ford Fusion. Rear Door Check Arm. Removal and Installation

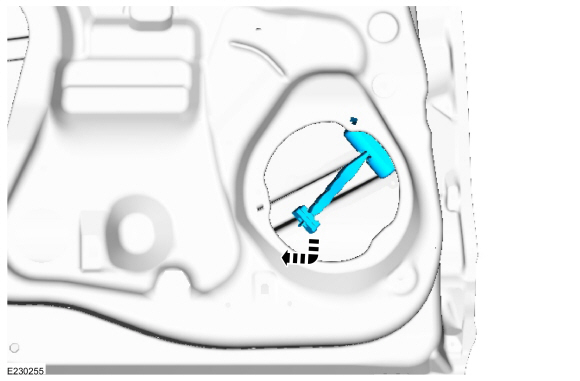

  1. Remove the rear door check arm assembly.
Ford Fusion. Rear Door Check Arm. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
