Ford Fusion: Fuel Tank and Lines - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Level Sender. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Fuel Level Sender. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the Fuel Pump and Sender Unit.
    Refer to: Fuel Pump and Sender Unit (310-01A Fuel Tank and Lines - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

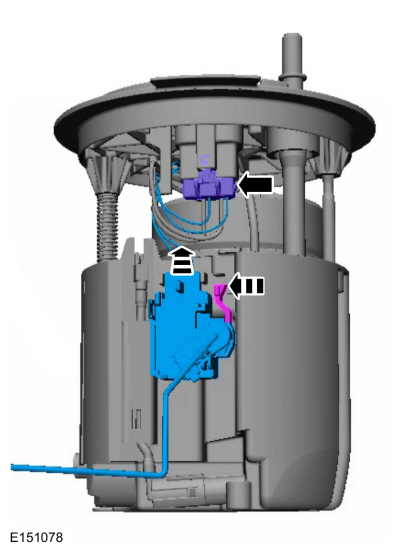

  1. Disconnect the fuel level sender electrical connector, release the retainer tab and remove the fuel level sender.
Ford Fusion. Fuel Level Sender. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
