Ford Fusion: Body Closures / Front Door Check Arm. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Front Door Check Arm. Removal and Installation

Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Remove the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
  1. Remove the door trim panel and the water shield.
    Refer to: Front Door Trim Panel (501-05) .

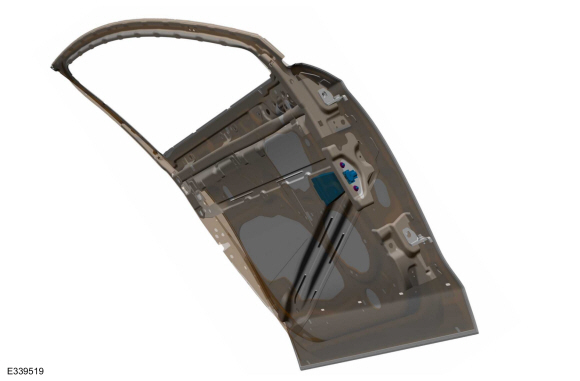

  1. Remove the fasteners and the front door check arm.
Ford Fusion. Front Door Check Arm. Removal and Installation

Installation

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Install the front door check arm and fasteners.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Front Door Check Arm. Removal and Installation
  1. Install and align the front door.
    Refer to: Front Door (501-03 Body Closures, Removal and Installation).
    Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
  1. Install the water shield and door trim panel.
    Refer to: Front Door Trim Panel (501-05) .
