Ford Fusion: Body Closures / Front Door. Removal and Installation

Special Tool(s) / General Equipment

Door Lift

Removal

NOTE: Removal steps in this procedure may contain installation details.

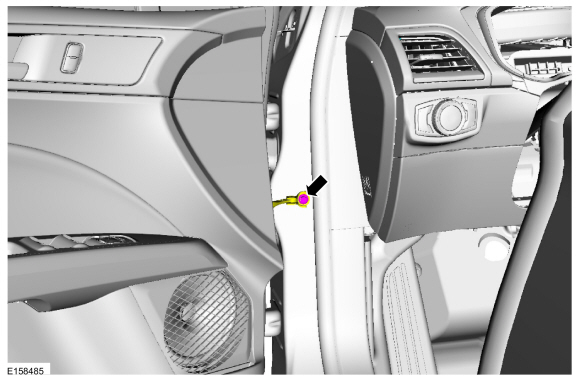

  1. Remove the check arm bolt.
    Torque: 18 lb.ft (25 Nm)
Ford Fusion. Front Door. Removal and Installation

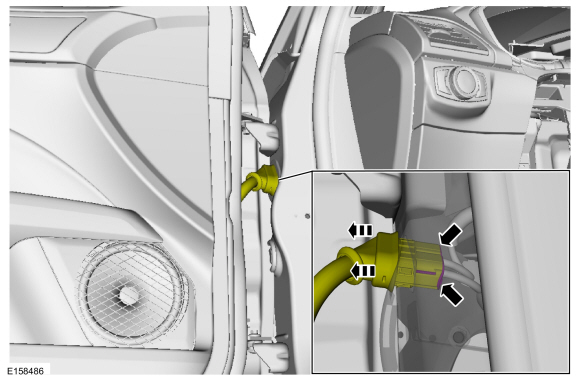

  1. Disconnect the front door electrical connector.
Ford Fusion. Front Door. Removal and Installation

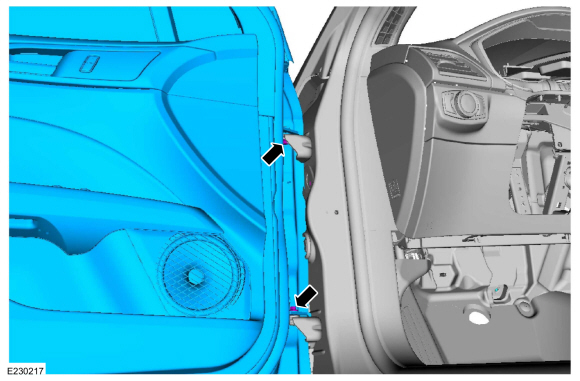

  1. Remove the door hinge pivot bolts and the door.
    Use the General Equipment: Door Lift
    Torque: 22 lb.ft (30 Nm)
Ford Fusion. Front Door. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Check the alignment and correct if necessary.
    Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).

    Rear Door Check Arm. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: LH shown, RH similar. Remove the rear check arm bolt...

    Fuel Filler Door Spring. Removal and Installation

    Special Tool(s) / General Equipment Flat Headed Screw Driver Removal Open the fuel filler door. Press the tab to release the fuel filler door spring from the fuel filler door assembly...
