Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit Vent. Removal and Installation

Removal

  1. With the vehicle in NUETRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. If equipped.

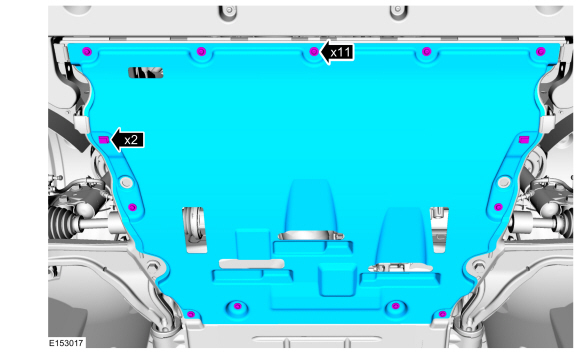

    Remove the retainers and the underbody shield.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation

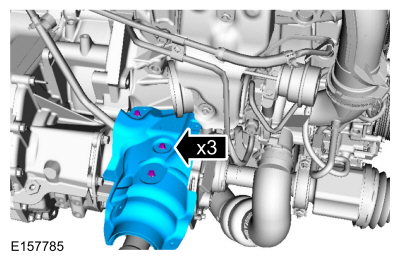

  1. Remove the PTU heat shield bolts and the heat shield.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation

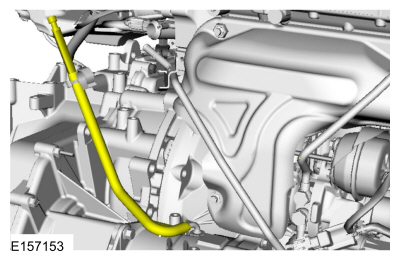

  1. Disconnect the PTU vent hose and position it aside.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation

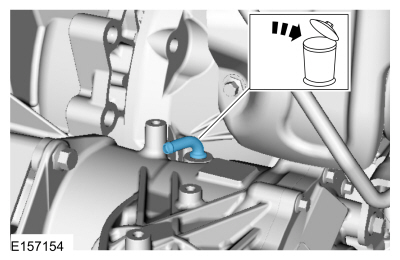

  1. Remove and discard the PTU vent.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation

Installation

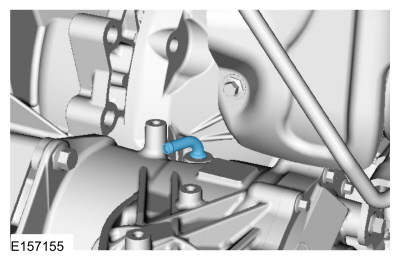

  1. Install a new PTU vent.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation
  1. Connect the PTU vent hose.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation
  1. Install the PTU heat shield and heat shield bolts.
    Torque: 97 lb.in (11 Nm)
Ford Fusion. Power Transfer Unit Vent. Removal and Installation
  1. If equipped.
    Install the underbody shield.
Ford Fusion. Power Transfer Unit Vent. Removal and Installation
