Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit. Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. If equipped.

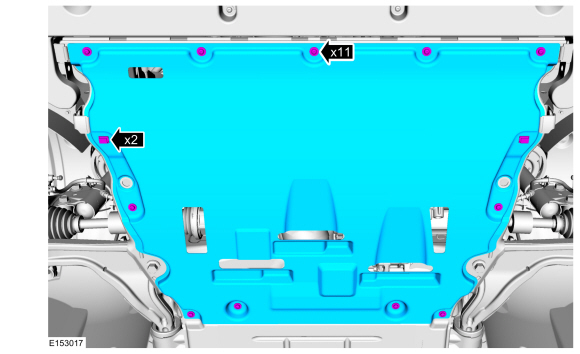

    Remove the underbody shield.
Ford Fusion. Power Transfer Unit. Removal
  1. Remove the rear driveshaft.
    Refer to: Rear Driveshaft (205-01 Driveshaft, Removal and Installation).

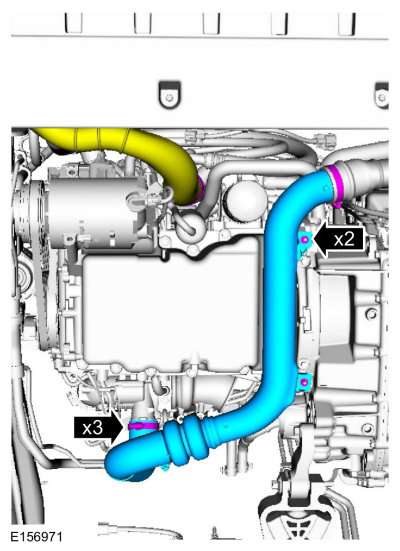

    • Loosen the clamp, remove the nuts and the CAC inlet tube.
    • Loosen the clamp and disconnect the CAC outlet tube.
Ford Fusion. Power Transfer Unit. Removal
  1. Remove the catalytic converter.
    Refer to: Catalytic Converter (309-00B Exhaust System - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).

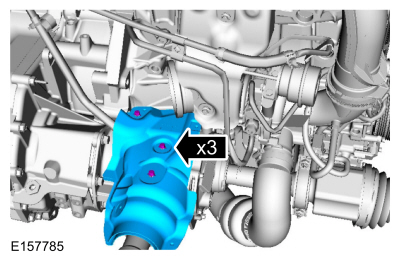

  1. Remove the PTU heat shield bolts and the heat shield.
Ford Fusion. Power Transfer Unit. Removal
  1. Remove the front halfshaft RH.
    Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

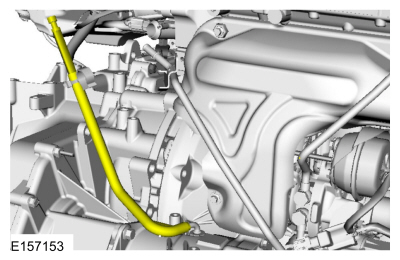

  1. Disconnect the PTU vent hose and position it aside.
Ford Fusion. Power Transfer Unit. Removal

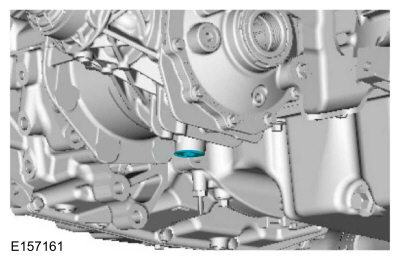

  1. Remove the PTU drain plug.
Ford Fusion. Power Transfer Unit. Removal

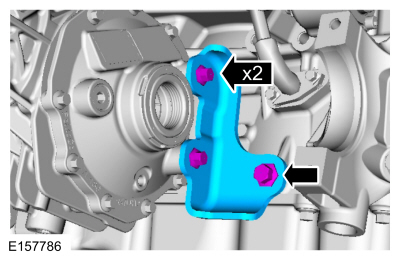

  1. Remove the PTU support bracket and bolts.
Ford Fusion. Power Transfer Unit. Removal

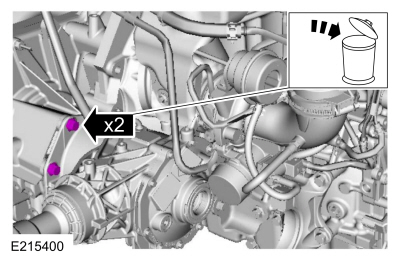

  1. Remove and discard the upper PTU bolts.
Ford Fusion. Power Transfer Unit. Removal

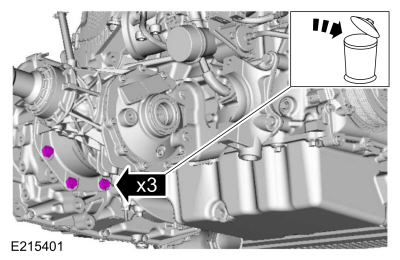

  1. Remove and discard the lower PTU bolts.
Ford Fusion. Power Transfer Unit. Removal

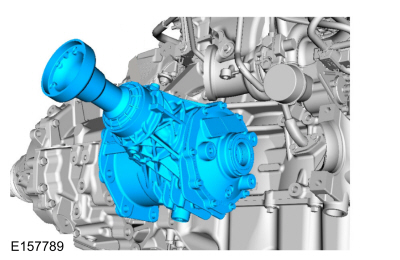

  1. Remove the PTU.
Ford Fusion. Power Transfer Unit. Removal

    Power Transfer Unit Vent. Removal and Installation

    Removal With the vehicle in NUETRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...

    Power Transfer Unit. Installation

    Install the PTU. Install the new top PTU bolts. Torque: 59 lb.ft (80 Nm) Install the new bottom PTU bolts...
