Ford Fusion: Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / Gear Shift Module (GSM). Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.

NOTE: Removal steps in this procedure may contain installation details.

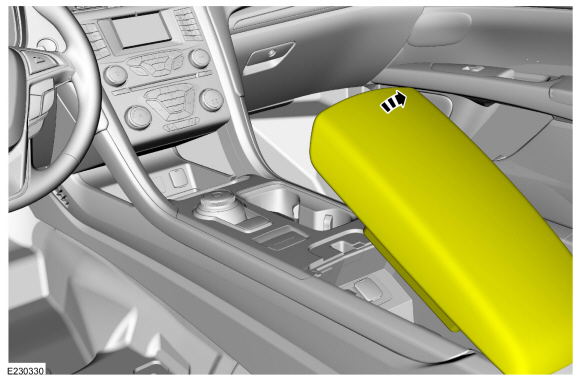

  1. Open the floor console stowage bin lid.
Ford Fusion. Gear Shift Module (GSM). Removal and Installation
  1. On both sides.

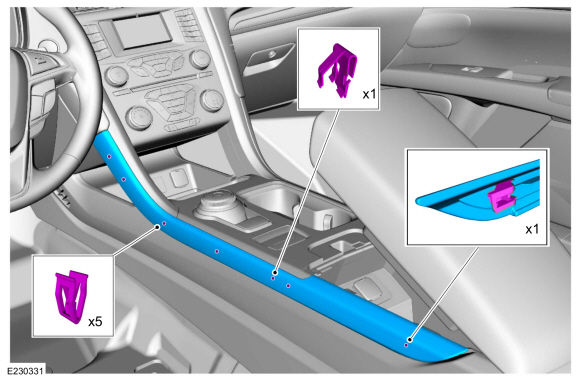

    Release the clips and remove the floor console upper side finish panels.
Ford Fusion. Gear Shift Module (GSM). Removal and Installation

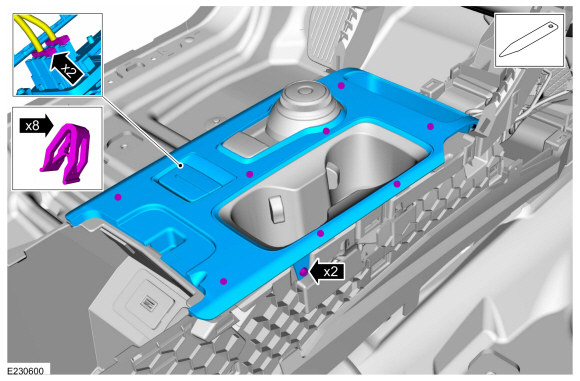

  1. Remove the screws, release the clips and remove the floor console upper trim panel.
    • Disconnect the electrical connectors.
      Use the General Equipment: Interior Trim Remover
Ford Fusion. Gear Shift Module (GSM). Removal and Installation

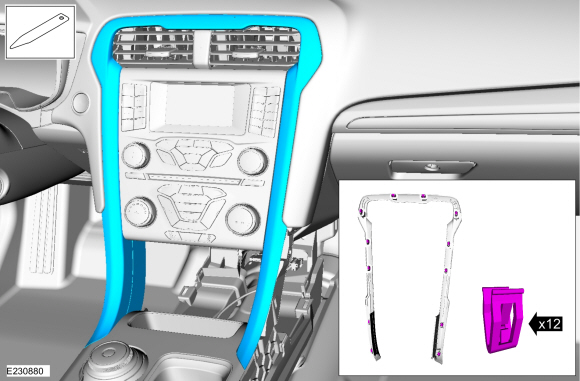

  1. Release the clips and remove the center stack trim panel.
    Use the General Equipment: Interior Trim Remover
Ford Fusion. Gear Shift Module (GSM). Removal and Installation
  1. On both sides.

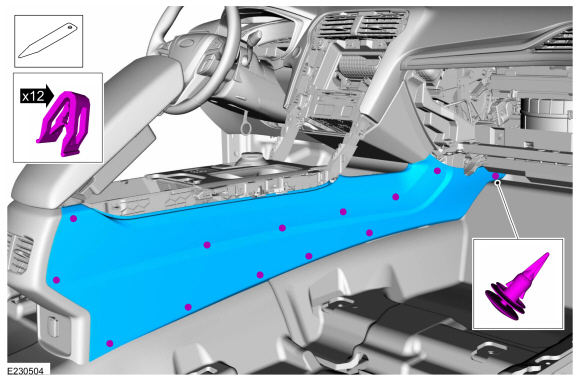

    Remove both console side trim panels.
    Use the General Equipment: Interior Trim Remover
Ford Fusion. Gear Shift Module (GSM). Removal and Installation

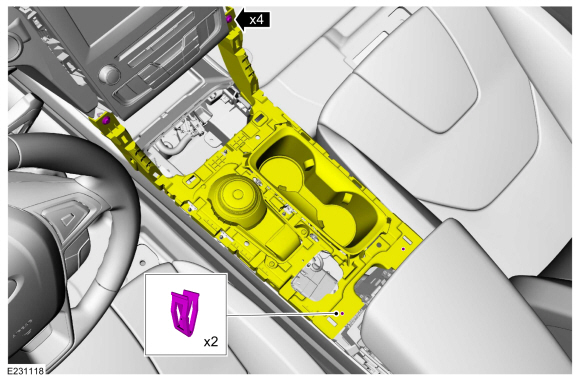

  1. Remove the screws, release the clips and position the floor console upper support to access the GSM.
Ford Fusion. Gear Shift Module (GSM). Removal and Installation

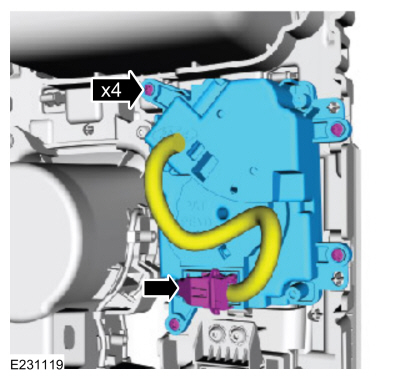

  1. Disconnect the electrical connector, remove the screws and remove the GSM.
Ford Fusion. Gear Shift Module (GSM). Removal and Installation

Installation

  1. To install, reverse the removal procedure.
