Ford Fusion: Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / Brake Shift Interlock Override Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Open the floor console stowage bin lid.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

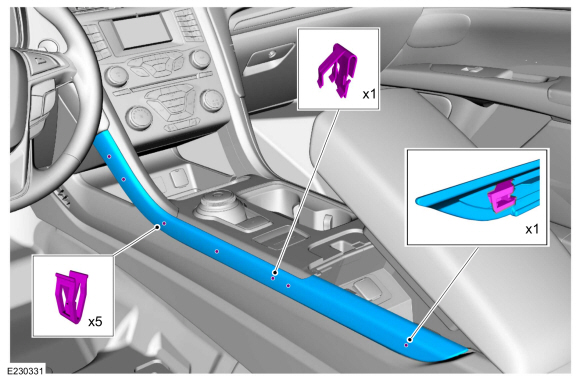

  1. On both sides.
    Release the clips and remove the floor console upper side finish panels.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

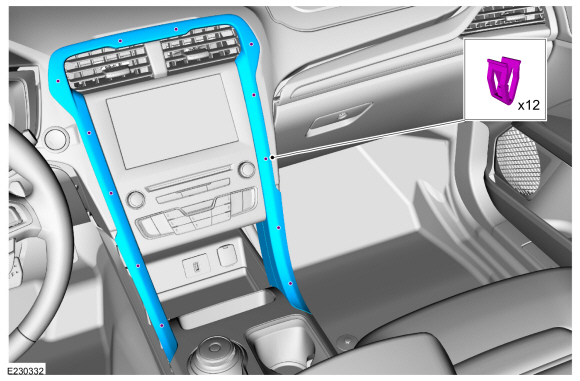

  1. Release the clips and remove the instrument panel center finish panel.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

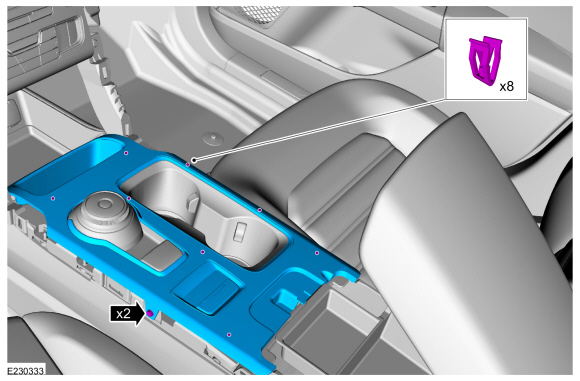

  1. Remove the screws, release the clips and remove the floor console upper finish panel.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

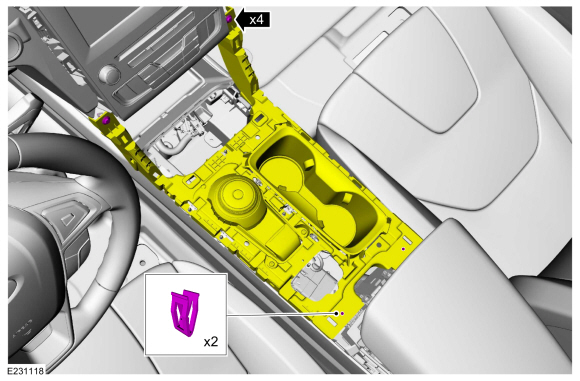

  1. Remove the screws, release the clips and position the floor console upper support to access the brake shift interlock override switch.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

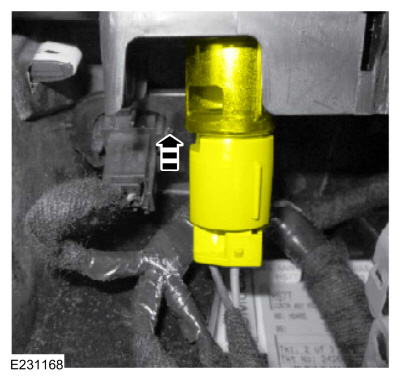

  1. Detach the power point from the console panel to access the brake shift interlock override switch.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation
  1. Disconnect the electrical connector, remove the bolt and remove the brake shift interlock override switch.
Ford Fusion. Brake Shift Interlock Override Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
