Ford Fusion: Body Closures / Fuel Filler Door. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Fuel Filler Door. Removal and Installation

Removal

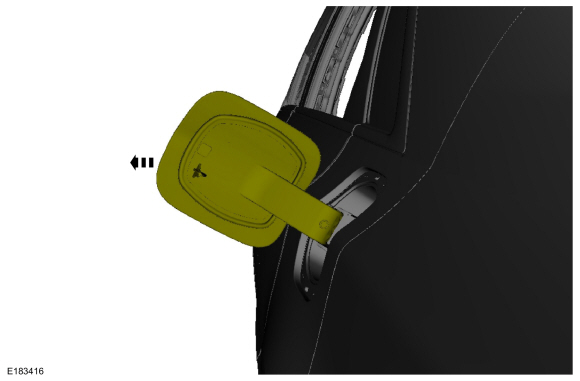

  1. Open the fuel filler door.
Ford Fusion. Fuel Filler Door. Removal and Installation

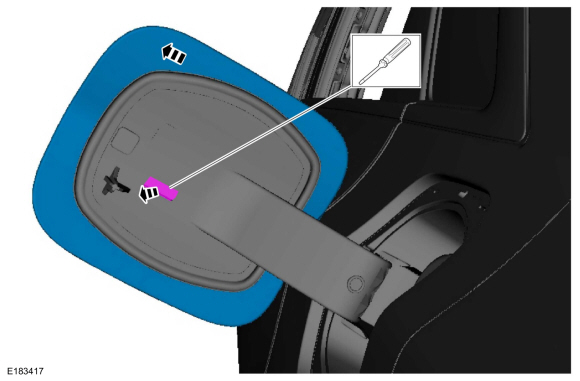

  1. Using a screwdriver, pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge.
Ford Fusion. Fuel Filler Door. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
