Ford Fusion: Front Seats / Front Seat Control Switch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front Seats / Front Seat Control Switch. Removal and Installation

Removal

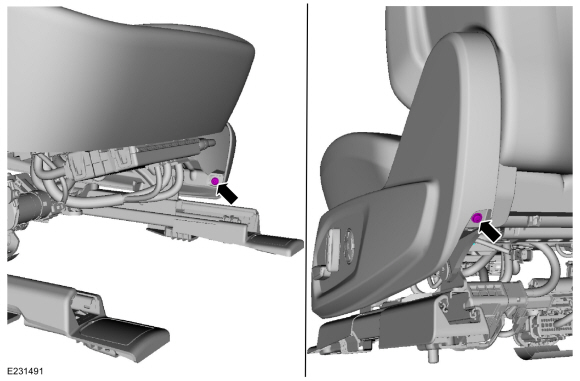

  1. Remove the side shield screws.
Ford Fusion. Front Seat Control Switch. Removal and Installation

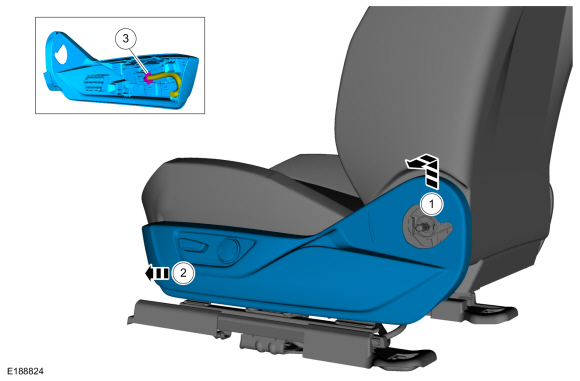

  1. Remove the side shield.
    1. Lift up on the rear of the side shield and pull outward.
    1. Push the side shield forward.
    1. Disconnect the electrical connector.
Ford Fusion. Front Seat Control Switch. Removal and Installation

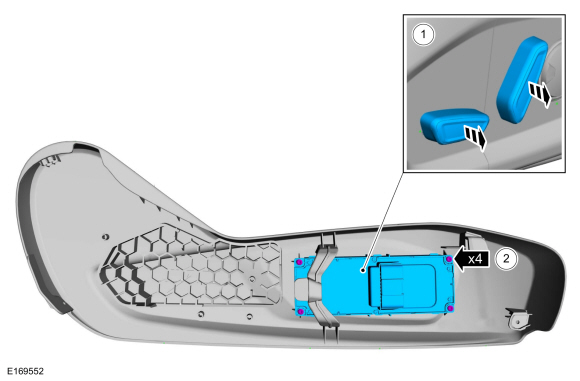

    1. Remove the seat control switch knobs.
    1. Remove the screws and the seat control switch.
Ford Fusion. Front Seat Control Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
