Ford Fusion: Body Closures / Luggage Compartment Lid Alignment. General Procedures

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Luggage Compartment Lid Alignment. General Procedures

Check

  1. Check the body to luggage compartment lid dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Adjustment

  1. Remove the luggage compartment lid latch.
    Refer to: Luggage Compartment Lid Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

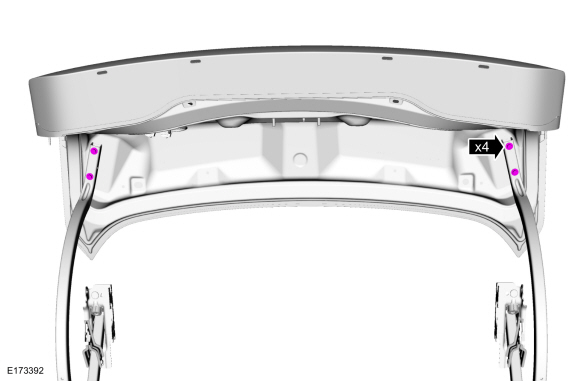

  1. Loosen the bolts to permit movement of the luggage compartment lid.
    Loosen:
       :   2 turn(s)
Ford Fusion. Luggage Compartment Lid Alignment. General Procedures

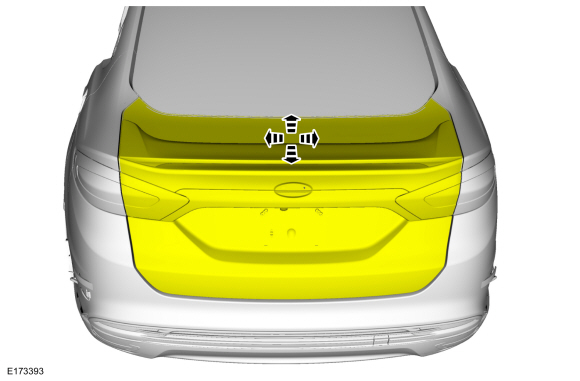

  1. Adjust the luggage compartment lid to specifications.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Ford Fusion. Luggage Compartment Lid Alignment. General Procedures
  1. Tighten the bolts.
    Torque: 89 lb.in (10 Nm)
Ford Fusion. Luggage Compartment Lid Alignment. General Procedures
  1. Check the luggage compartment lid to body dimensions.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Ford Fusion. Luggage Compartment Lid Alignment. General Procedures
  1. Install the luggage compartment lid latch.
    Refer to: Luggage Compartment Lid Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
