Ford Fusion: Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Degas Bottle. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp(s)

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Degas Bottle. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).

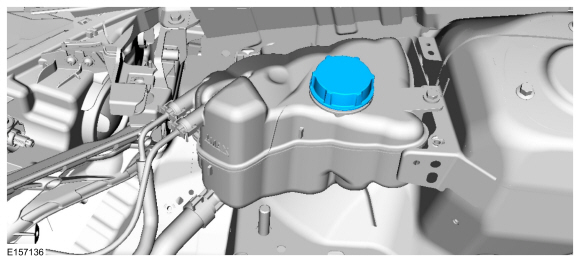

  1. Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.
Ford Fusion. Degas Bottle. Removal and Installation

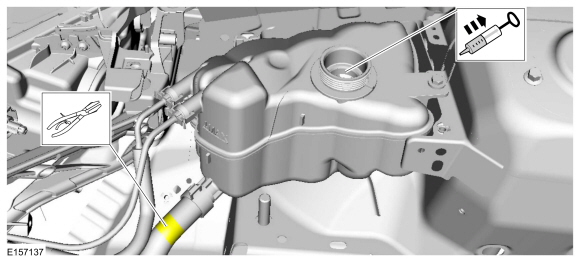

  1. Clamp the lower expansion tank hose and syphon the engine coolant from the expansion tank.
    Use the General Equipment: Hose Clamp(s)
Ford Fusion. Degas Bottle. Removal and Installation

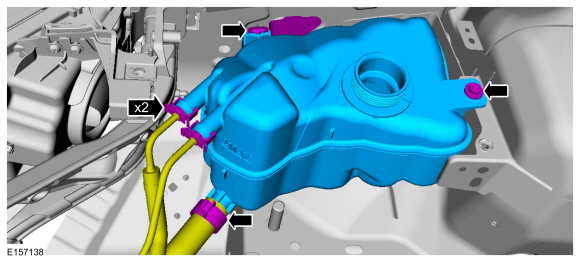

    • Release the clamp and disconnect the lower coolant hose. Depress the tabs and disconnect the upper coolant hoses.
    • Release the tab, remove the bolt and the degas bottle.
      Torque: 80 lb.in (9 Nm)
Ford Fusion. Degas Bottle. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
    Refer to: Specifications (303-03C Engine Cooling - 2.5L Duratec (125kW/170PS), Specifications).
