Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

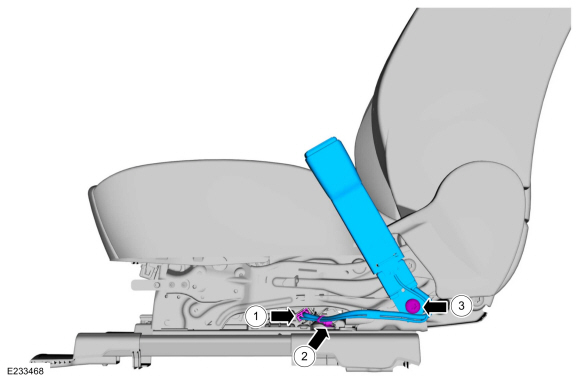

  1. Remove the seatbelt buckle.
    1. Disconnect the electrical connector.
    1. Detach the wire harness retainer.
    1. Remove the bolt.
      Torque: 26 lb.ft (35 Nm)
Ford Fusion. Front Seatbelt Buckle. Removal and Installation

Installation

  1. NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

    To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
