Ford Fusion: Seatbelt Systems / Seatbelt Twisted at the Seatbelt Guide. General Procedures

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Seatbelt Systems / Seatbelt Twisted at the Seatbelt Guide. General Procedures

Adjustment

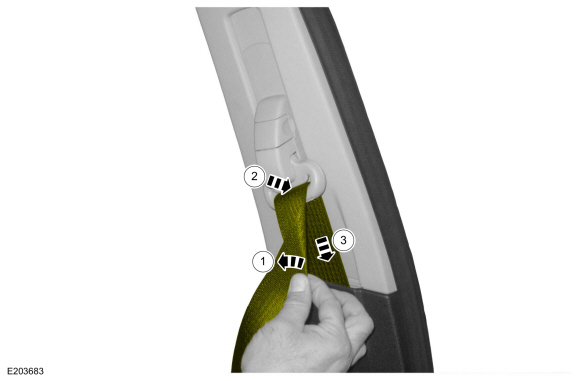

NOTE: Typical D-ring shown, others similar.

  1. If required, remove the necessary trim panel(s).
    1. Fold the seatbelt as indicated.
    1. Feed the folded portion of the seatbelt into the D-ring.
    1. Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
