Ford Fusion: Front Seats / Front Seat Track. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front Seats / Front Seat Track. Removal and Installation

Removal

NOTE: Note the wire harness routing for installation purposes.

Remove the front seat backrest.
Refer to: Front Seat Backrest (501-10A Front Seats, Removal and Installation).

Remove the front seat cushion cover.
Refer to: Front Seat Cushion Cover (501-10A Front Seats, Removal and Installation).

NOTE: Passenger seat only.

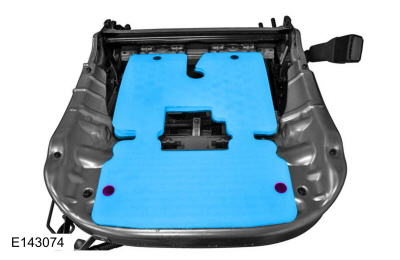

Detach the front pin-type retainers, lift the bladder and feed the OCS hose and sensor out from between the front seat cushion support wires.

Ford Fusion. Front Seat Track. Removal and Installation

NOTE: Passenger seat only.

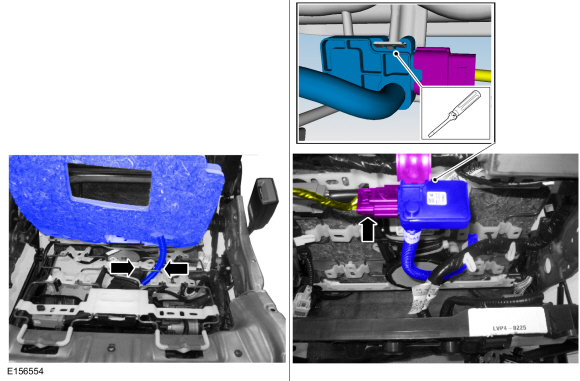

- Disconnect the OCS sensor electrical connector, release the tab and remove the OCS sensor.
- Route the OCS sensor and hose through the front seat cushion suspension wires.

Installation

NOTE: Transfer components to the new front seat track as necessary.
To install, reverse the removal procedure.

Front Seat Power Lumbar Assembly. Removal and Installation

Removal Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation). Detach the electrical connector retainers and position the wire harnesses aside...

Front Seat Track Motor. Removal and Installation

Special Tool(s) / General Equipment Pick Hook Electric Drill Removal WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash...
