Ford Fusion: Front End Sheet Metal Repairs / Front Crossmember. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front End Sheet Metal Repairs / Front Crossmember. Removal and Installation
Removal
-
Remove the underbody shields.
-

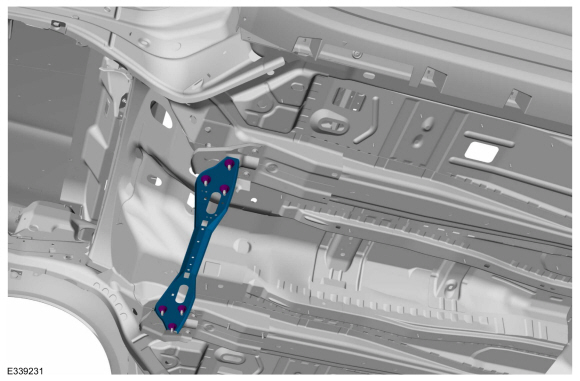

Remove the fasteners and the front crossmember.
 |
Installation
-
NOTE: Install and hand tighten all fasteners before tightening to specification.
Install the front crossmember and fasteners.
Torque: 30 lb.ft (40 Nm)
 |
-
Install the underbody shields.
Front Side Member Extension. Removal and Installation
Removal
NOTE:
Left hand (LH) side shown, right hand (RH) side similar.
Remove the underbody shields.
Remove the front crossmember...
