Ford Fusion: Front End Body Panels / Engine Undershield. Removal and Installation

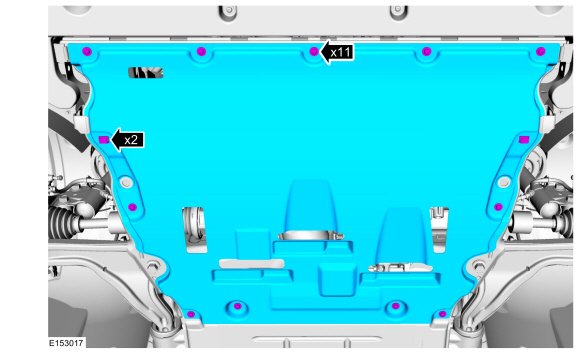

  1. Remove the screws, grommets and the engine front undershield.
Ford Fusion. Engine Undershield. Removal and Installation

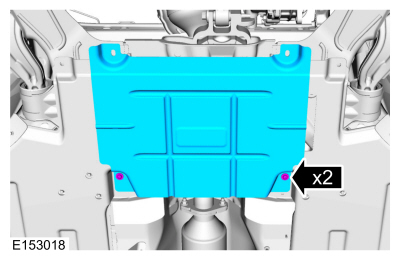

  1. Remove the screws and the engine undershield.
Ford Fusion. Engine Undershield. Removal and Installation
