Ford Fusion: Front End Body Panels / Cowl Panel Grille. Removal and Installation


  1. Remove the windshield wiper pivot arms.
    Refer to: Windshield Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
  1. On both sides.

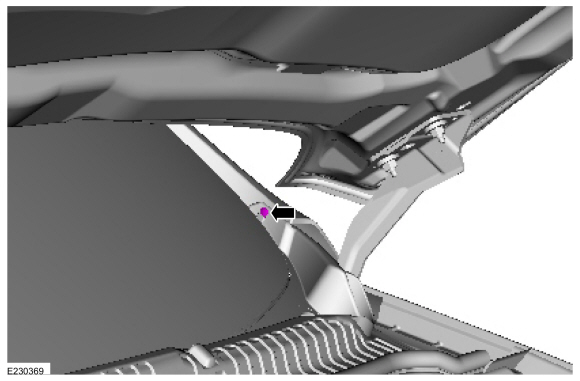

    Remove the pin-type retainer.
Ford Fusion. Cowl Panel Grille. Removal and Installation

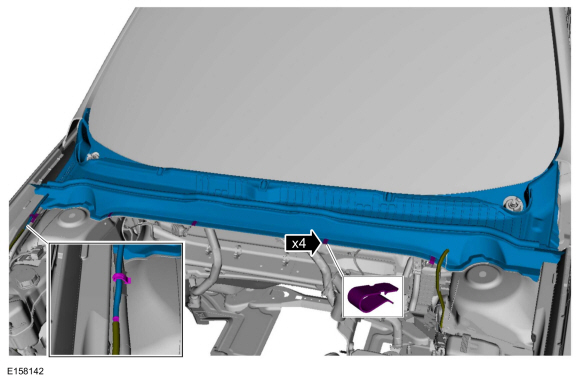

    • Detach the windshield washer hose coupling and the retainer.
    • Remove the clips and the cowl panel grille.
Ford Fusion. Cowl Panel Grille. Removal and Installation


  1. To install, reverse the removal procedure.

    Active Grille Shutter Actuator. Removal and Installation

    Removal Remove the active grille shutter. Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation). Release the vanes from the active grille shutter...

    Engine Undershield. Removal and Installation

    Remove the screws, grommets and the engine front undershield. Remove the screws and the engine undershield. ..
