Ford Fusion: Front End Body Panels / Active Grille Shutter Actuator. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Front End Body Panels / Active Grille Shutter Actuator. Removal and Installation

Removal

  1. Remove the active grille shutter.
    Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).

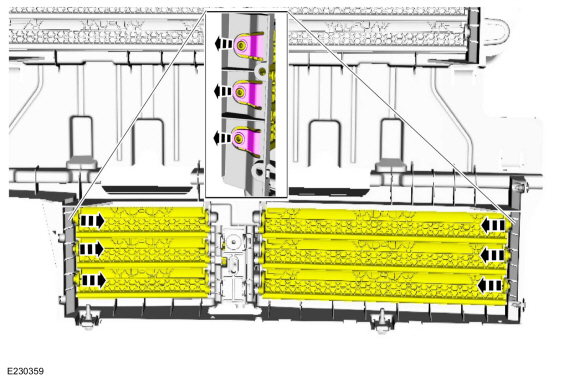

  1. Release the vanes from the active grille shutter.
Ford Fusion. Active Grille Shutter Actuator. Removal and Installation
  1. Remove the vanes.
Ford Fusion. Active Grille Shutter Actuator. Removal and Installation

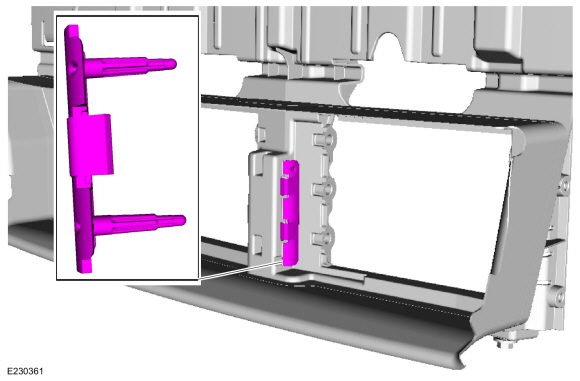

  1. Remove the vane linkage.
Ford Fusion. Active Grille Shutter Actuator. Removal and Installation

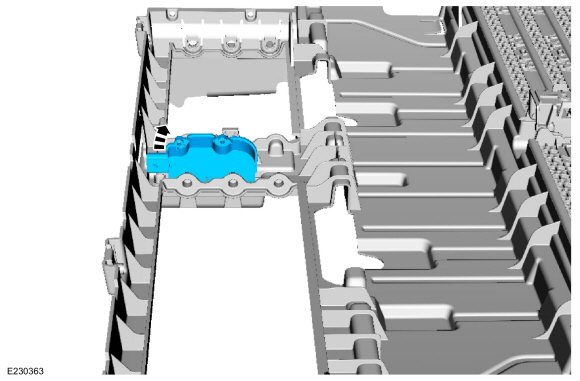

  1. Remove the clip.
Ford Fusion. Active Grille Shutter Actuator. Removal and Installation

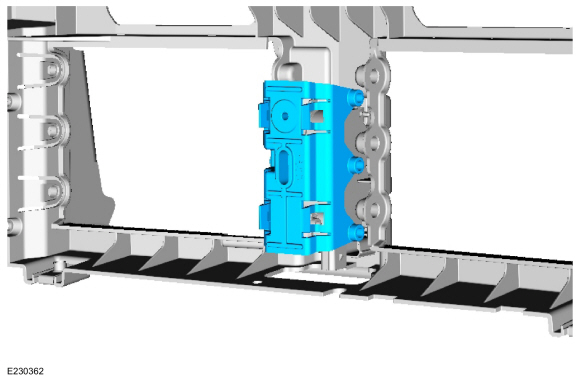

  1. Remove the active grille shutter actuator.
Ford Fusion. Active Grille Shutter Actuator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
