Ford Fusion: Engine System - General Information / Cylinder Bore Taper. General Procedures

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine System - General Information / Cylinder Bore Taper. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

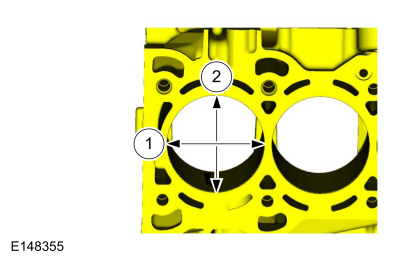

Measure the cylinder bore at the top, middle and bottom of piston ring travel in 2 directions as indicated. Verify the cylinder bore is within the wear limit. The difference indicates the cylinder bore taper. If the cylinder bore taper does not meet specification, bore the cylinder to the next oversize limit.

Ford Fusion. Cylinder Bore Taper. General Procedures

Cylinder Block Distortion. General Procedures

Special Tool(s) / General Equipment Feeler Gauge Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0...

Cylinder Head Distortion. General Procedures

Special Tool(s) / General Equipment Feeler Gauge Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Make sure all cylinder head surfaces are clear of any gasket material, silicone sealant, oil and coolant...
