Ford Fusion: Engine System - General Information / Crankshaft Main Bearing Journal Clearance. General Procedures

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine System - General Information / Crankshaft Main Bearing Journal Clearance. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

  1. NOTE: Crankshaft main bearing journals must be within specifications before checking journal clearance.

    Remove the crankshaft main bearing cap and crankshaft main bearing.

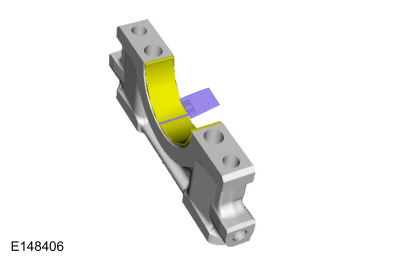

  1. Position a piece of Plastigage across the crankshaft main bearing surface.
Ford Fusion. Crankshaft Main Bearing Journal Clearance. General Procedures
  1. NOTE: Do not turn the crankshaft while carrying out this procedure.

    Install and tighten to specifications, then remove the crankshaft main bearing cap.

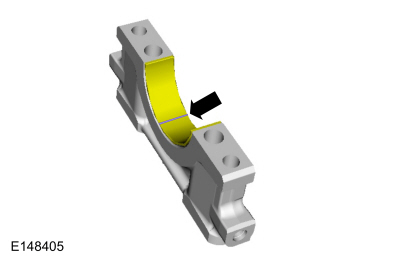

  1. Measure the Plastigage to get the crankshaft main bearing clearance. The Plastigage should be smooth and flat. A changing width indicates a tapered or damaged crankshaft or crankshaft bearing.
Ford Fusion. Crankshaft Main Bearing Journal Clearance. General Procedures

    Connecting Rod Bearing Journal Clearance. General Procedures

    Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: The crankshaft connecting rod journals must be within specifications to check the connecting rod bearing journal clearance...

    Cylinder Block Core Plug Replacement. General Procedures

    Special Tool(s) / General Equipment 100-001 (T50T-100-A) Slide Hammer Materials Name Specification Motorcraft® Threadlock 262TA-26 WSK-M2G351-A6  Repair All core plugs NOTE: Cylinder block core plug shown, cylinder head core plug similar...
