Check
NOTE: Refer to the appropriate Section 303-01 for the specification.
-
NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide, if necessary.
-

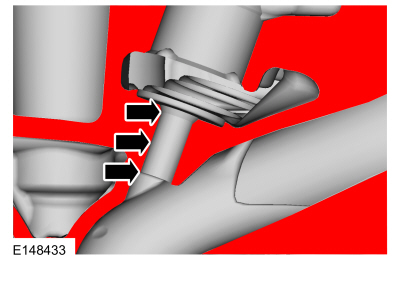

Use a ball gauge to determine the inside diameter of
the valve guides in 2 directions at the top, middle and bottom of the
valve guide.
-
Measure the ball gauge with a micrometer.
-
If the valve guide is not within specifications, install a new cylinder head assembly.
-
Use a ball gauge to determine the inside diameter of
the valve guides in 2 directions at the top, middle and bottom of the
valve guide.
 |
