Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest.

All backrests

  1. Remove the rear LH seatbelt buckle.
    Refer to: Rear Seatbelt Buckle LH (501-20A Seatbelt Systems, Removal and Installation).

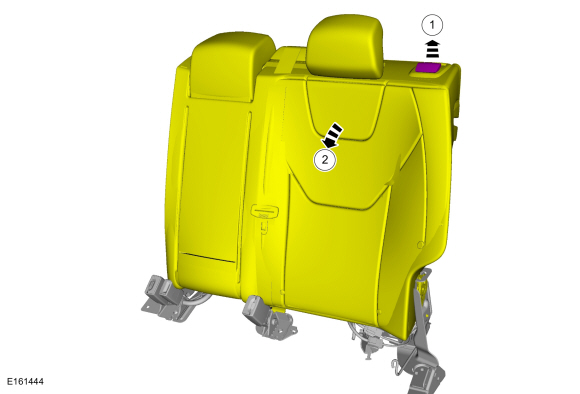

    1. Lift the rear seat latch release handle.
    1. Lower the rear seat backrest.
Ford Fusion. Rear Seat Backrest. Removal and Installation

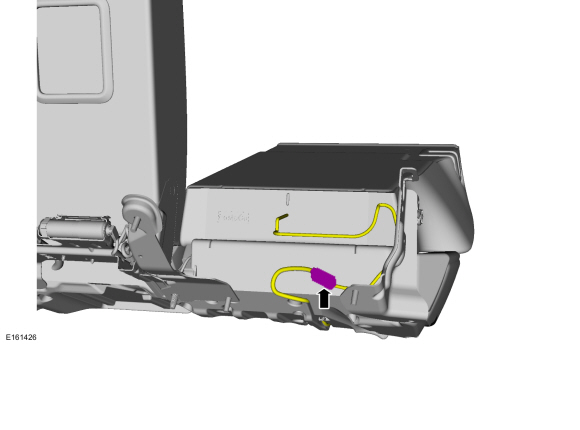

  1. If equipped with heated seats.
    Disconnect the heated seat electrical connector.
Ford Fusion. Rear Seat Backrest. Removal and Installation

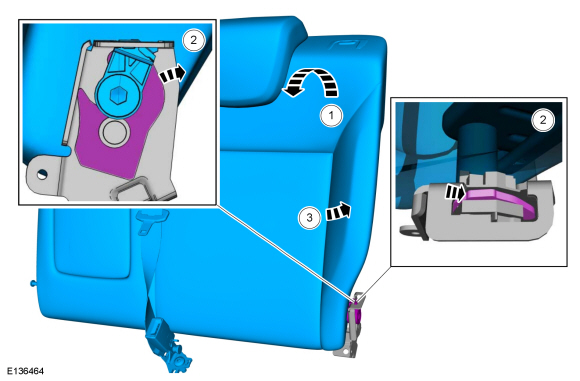

    1. Lower the backrest.
    1. Rotate the backrest hinge locking arm rearward and release the backrest.
    1. Remove the 40 percent seat backrest.
Ford Fusion. Rear Seat Backrest. Removal and Installation

60 percent backrest

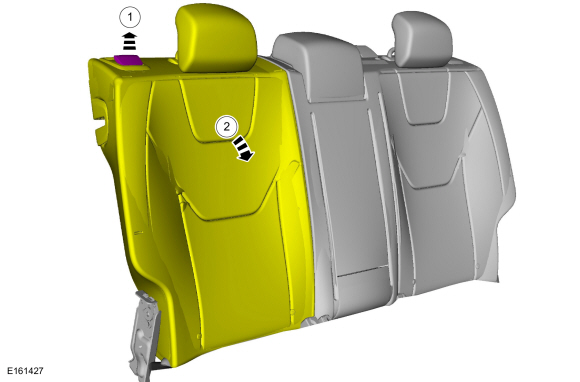

    1. Lift the rear seat latch release handle.
    1. Lower the rear seat backrest.
Ford Fusion. Rear Seat Backrest. Removal and Installation

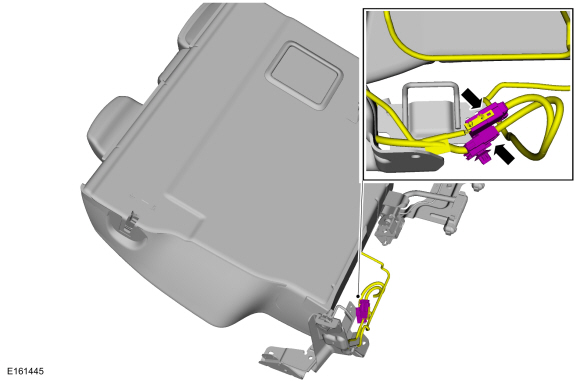

  1. If equipped with heated seats.
    Disconnect the heated seat electrical connectors.
Ford Fusion. Rear Seat Backrest. Removal and Installation

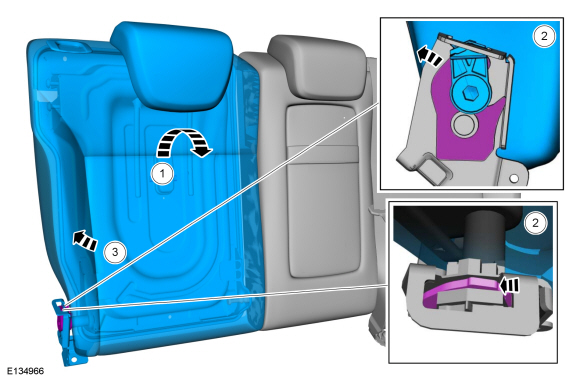

    1. Lower the backrest.
    1. Rotate the backrest hinge locking arm rearward and release the backrest.
    1. Remove the 60 percent seat backrest.
Ford Fusion. Rear Seat Backrest. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
