Ford Fusion: Rear Seats / Rear Seat Backrest Latch. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Rear Seats / Rear Seat Backrest Latch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear seat cushion.
    Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

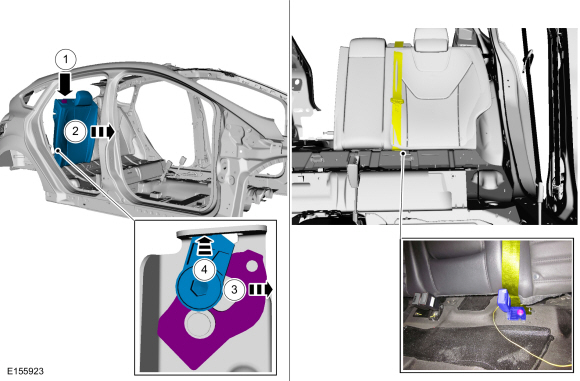

    1. Remove the bolt and position the rear center safety belt aside. Lift the rear seat latch release handle.
      Torque: 35 lb.ft (48 Nm)
    1. Lower the rear seat backrest.
    1. Rotate the backrest hinge locking arm to release the backrest.
    1. Remove the seat backrest.
Ford Fusion. Rear Seat Backrest Latch. Removal and Installation

NOTE: It is necessary to remove the 40 percent seat backrest before the 60 percent seat backrest will release.

    1. Lift the rear seat latch release handle.
      Torque: 35 lb.ft (48 Nm)

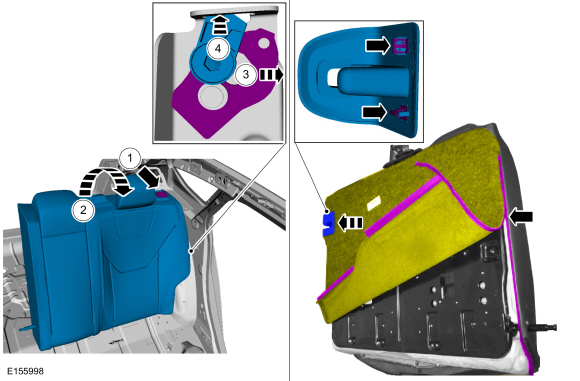

    1. Lower the rear seat backrest. Remove the backrest latch bezel. Unzip the backrest cover and release the backrest cover J-clips.
    1. Rotate the backrest hinge locking arm to release the backrest.
    1. Remove the seat backrest.
Ford Fusion. Rear Seat Backrest Latch. Removal and Installation

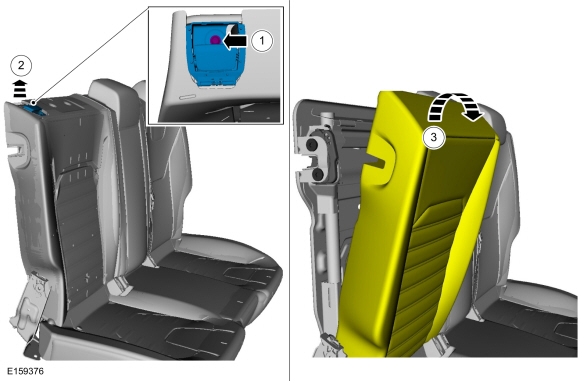

    1. Remove the screw.
      Torque: 44 lb.in (5 Nm)
    1. Remove the seat latch bezel.
    1. Position aside the backrest cover foam.
Ford Fusion. Rear Seat Backrest Latch. Removal and Installation

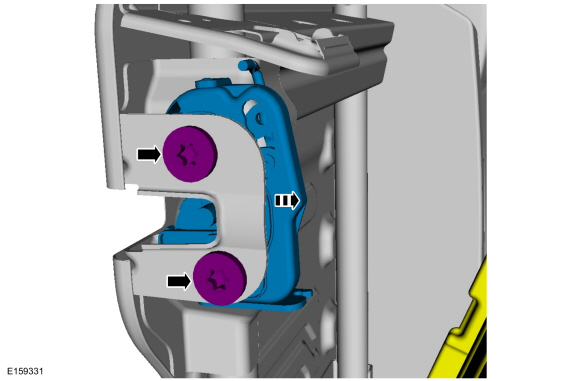

  1. Remove the bolts and the rear seat backrest latch.
    Torque: 18 lb.ft (24 Nm)
Ford Fusion. Rear Seat Backrest Latch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    Rear Seat Backrest. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest...

    Rear Seat Cushion. Removal and Installation

    Removal Remove the rear seat cushion. Release the locking tabs. Position the rear seat cushion upward. If equipped with heated seats...
